Used a phone app to measure the drone frequency, so
if this is telling the truth,
I guess around 130hz, worst
drone from about 1500 to 2000rpm, right around 65/70mph

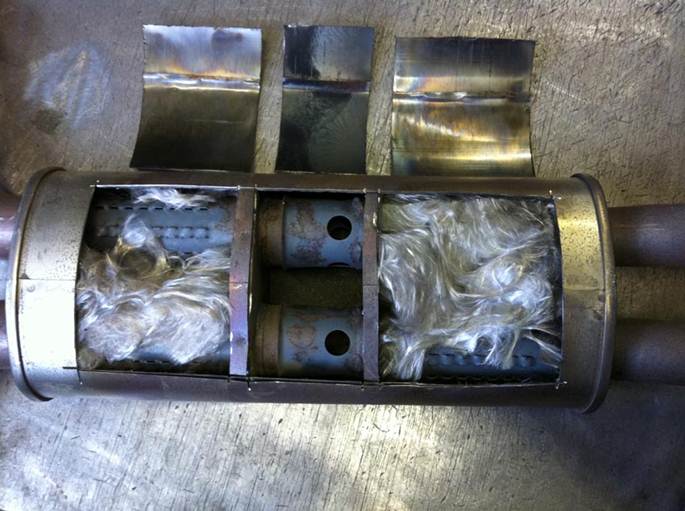

Found some time to rip open a mid
box, not too surprised by what is inside….
The middle chamber looks to be HSV’s idea of a x-pipe.
Sound absorption material looks like it was thrown
in from 20ft…..very hit and miss…
Poor quality stainless steel skin, mild steel
baffle inners !
Redeeming feature was that it was a double skin
wrapped box.

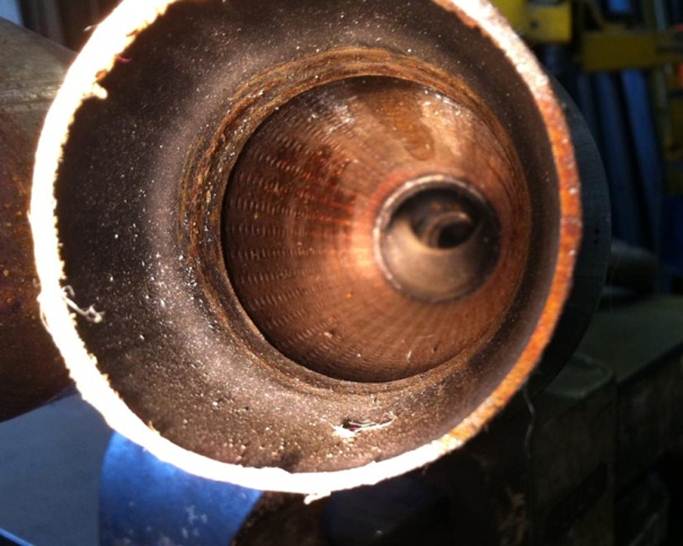

Cherry bomb looking silencers just after the mid
box, exactly what the look like with perforated straight
through baffle tubes inside…….mild steel ??

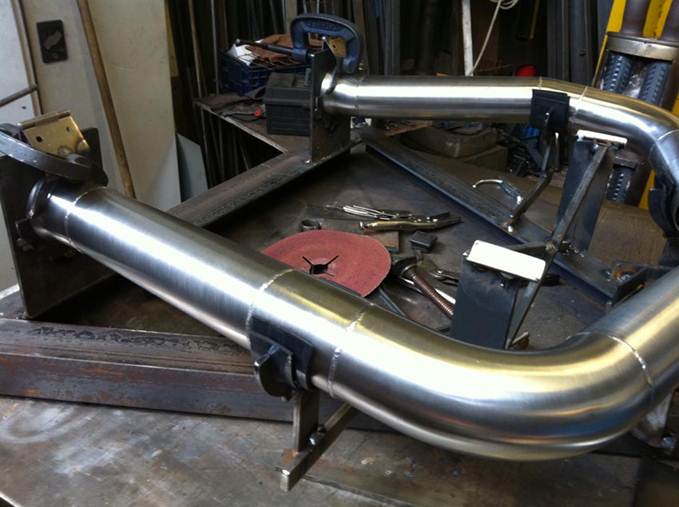

In progress with the tube work from cats……
Kinda gone off this x-pipe I made a while back
so made another from a single 90deg 3D radius mandrel bend.
A bit more conventional, I did purchase one from
MIJ Exhausts but sent this back as was not
too happy with the wall thickness of tube they use.
