Well it seems that the drone is a common problem
which the standard rear
boxes deal with quite efficiently. I’m going to have to tackle this problem
in
a slightly different way.
For now, I want to deal with an issue I have with
the amount of un-even exhaust
soot between the tail pipes. The spun boxes from www.birchillsautomotive.com were
twin 2 ½” in and single 2 ½” out. I would have thought that inside the box
would have been
a “Y” joiner to equally split the in coming

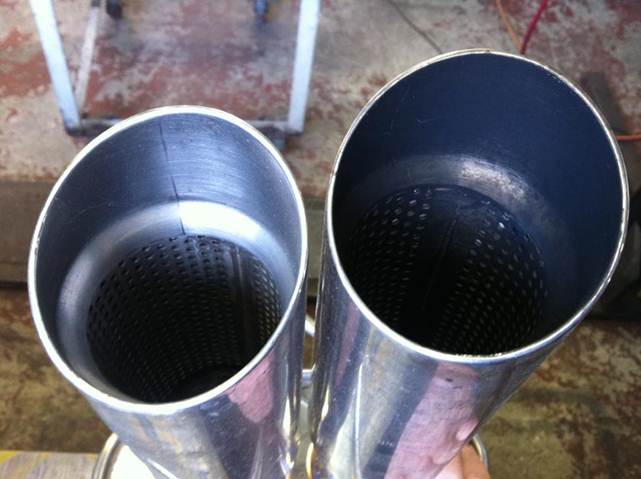

exhaust gasses between the twin exits. The fact that
the tail pipes have different amounts of soot deposit would suggest
something a bit weird with
the construction.

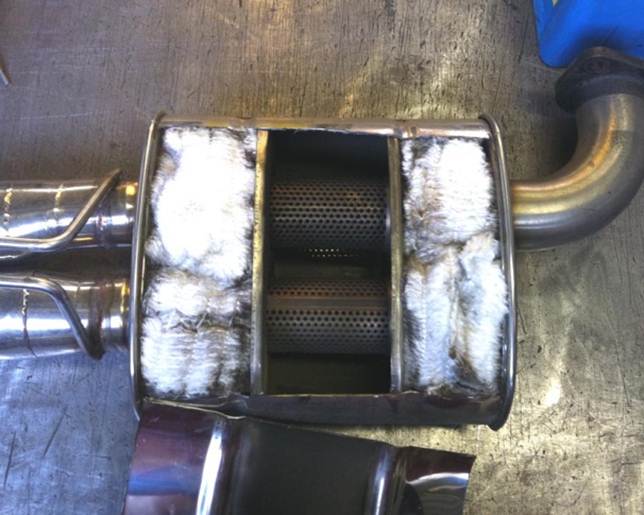

Time today for some
surgery.

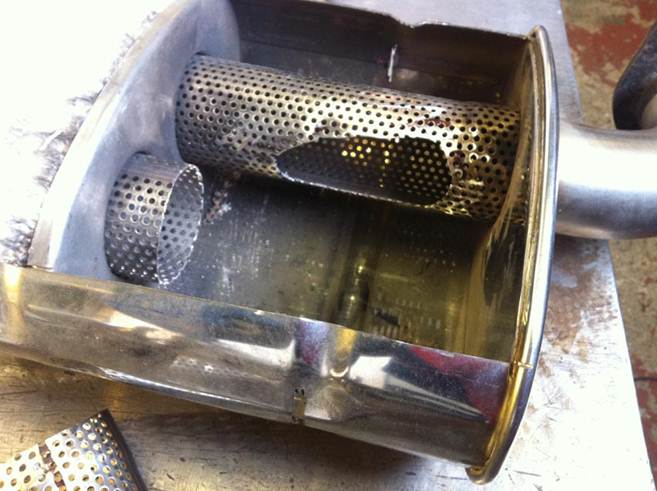

I don’t pretend to understand the science behind
silencer construction, but this design
does leave me wondering why it has been made like this. Obviously there is
no way
exhaust gasses could flow equally out of the 2 tailpipes.
I wonder if I’d bought the single centre
in and twin out instead of single offset in / twin out
the construction would have been
any different ? Overall the actual construction looks
quite robust (not withstanding the

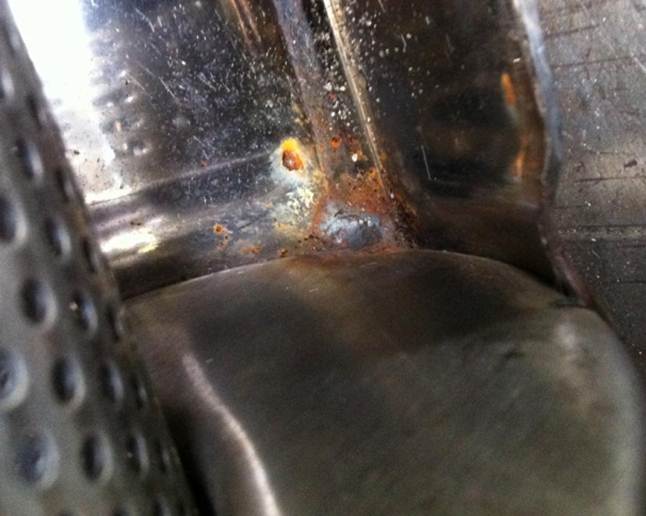

mild steel mig welds to tack the baffle plates to the outer
skins !....a bit naughty that ! )
Some cutting later:-

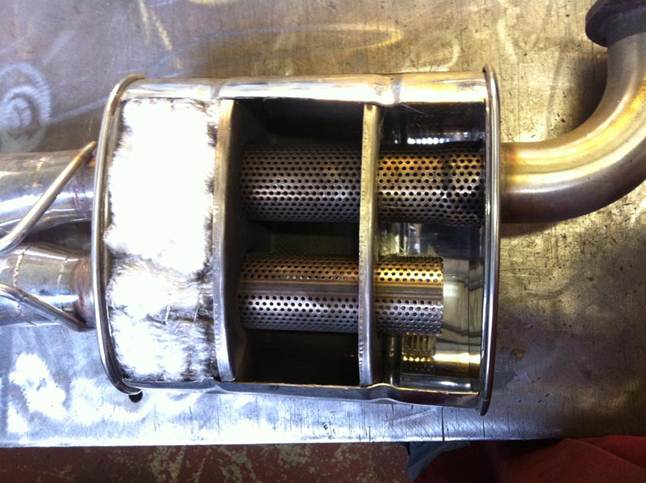

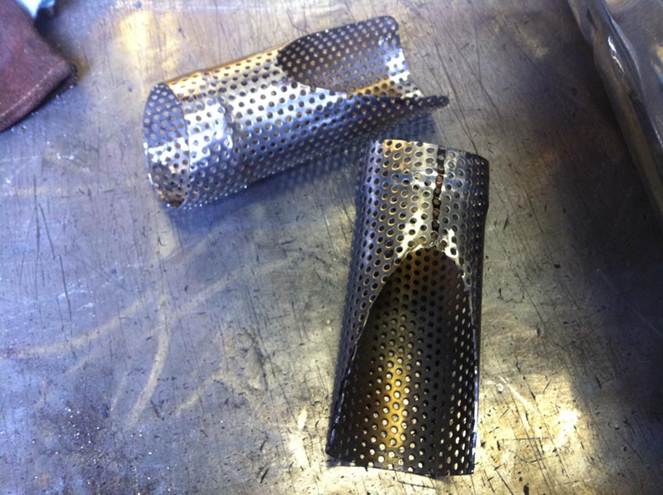

Some joiners to create at shallow “Y” piece.
I don’t think this will perfectly equal the exhaust
flow into each tail pipe, but it should be a lot
better than before.

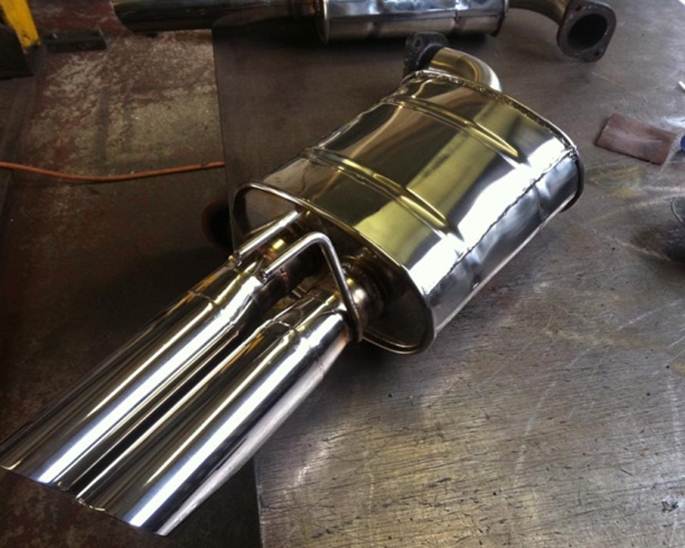

Some added packing, closure of the
box, a bit of buffing and nearly good as new.
I wonder how the exhaust will sound now that there
is no empty chamber in these ???
I really don’t think the drone is going to
disappear though………
……some time later, boxes now fitted, been for a
short drive, and first impression is good.
Drone is somewhat less than before although I’m not
declaring this sorted just yet.
Thanks to Joe Ellis of BTB exhausts who first put
me onto the idea of quarter wave pipes.
More inspiration from the Pontiac G*8 guys in US
http://www.g8board.com/forums/showthread.php?p=757955#post757955
During fitting I checked that there is enough space
above the boxes for a quarter
wave pipe and there is !......so this will be next…….or build the rest of
pipework to
cats….can’t decide which just yet…….
Think it will be the quarter wave pipe as drone
will always be there !
Using some cad confirms design and adjustable pipe
length with a slider piece
for 3” fine adjustment.
Just need to find some time to stick this all
together……….
