Changing Clutch Actuator Fluid

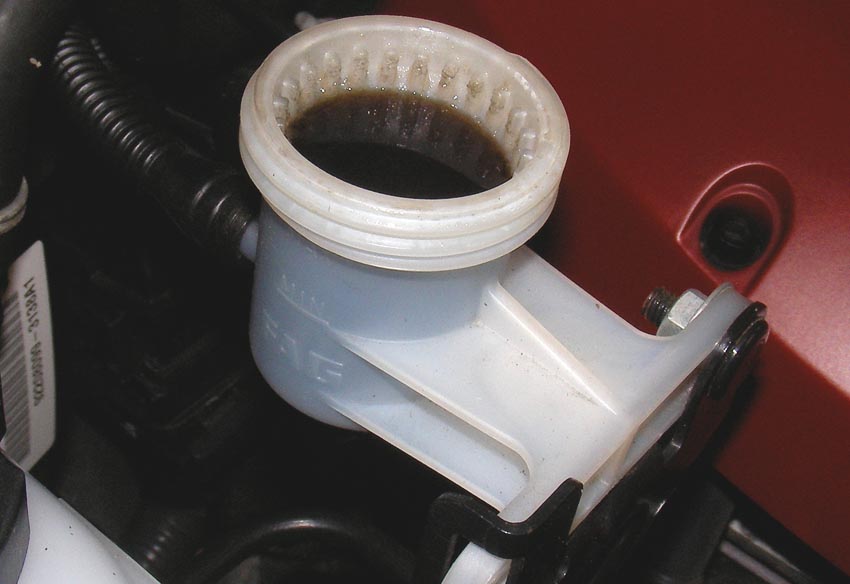

Dirty fluid after less than 10k !

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image001.jpg



Easy bleed attached, I prefer to hang the air hose into the pit and use a compressor set at 10psi

So I can directly control when I want the fluid to be pushed into the reservoir.

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image003.jpg

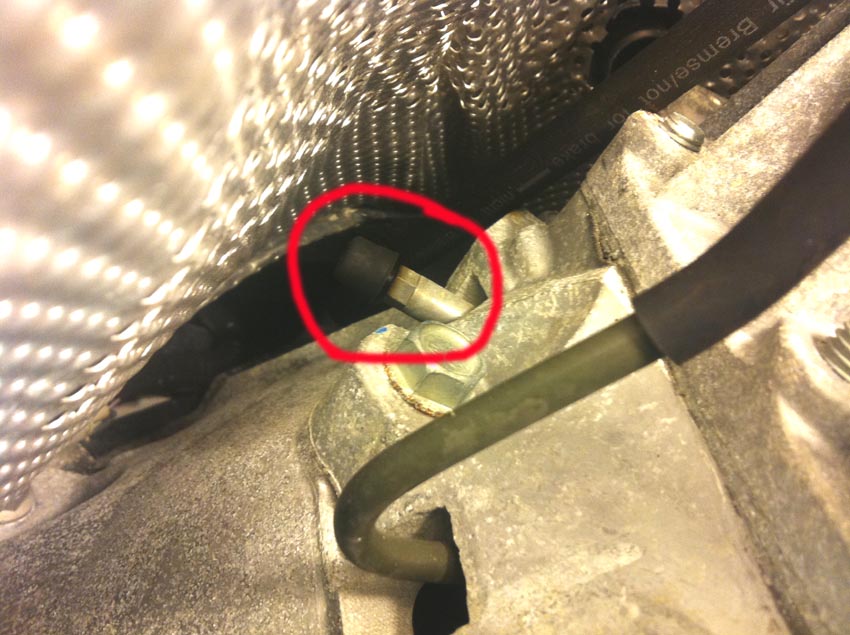

From underneath, location of bleed nipple

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image004.jpg



http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image005.jpg



http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image006.jpg

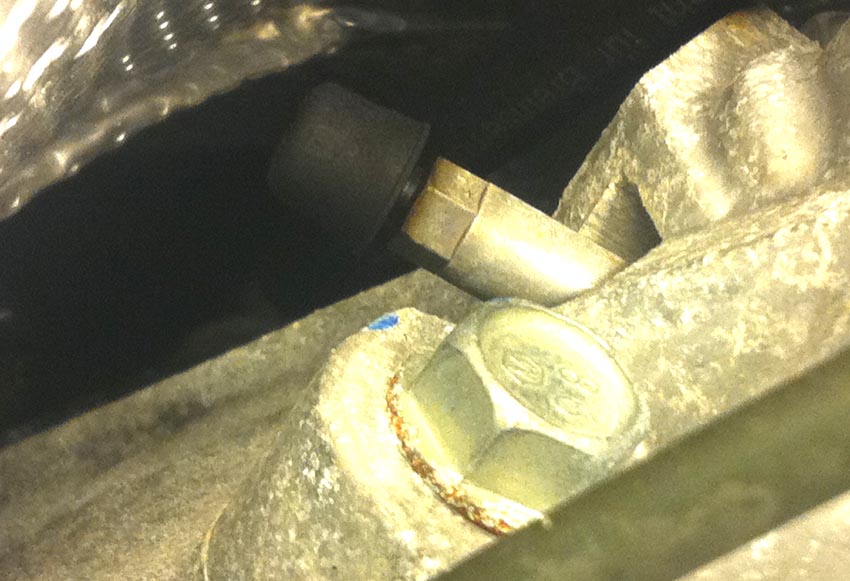

M8 spanner required to undo the nipple.



Bleed until dirty until fluid turns clear.

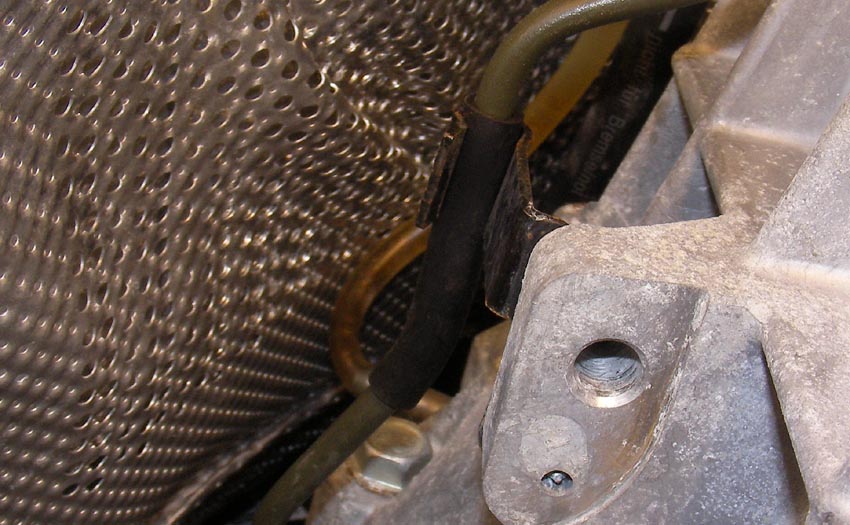

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image007.jpg

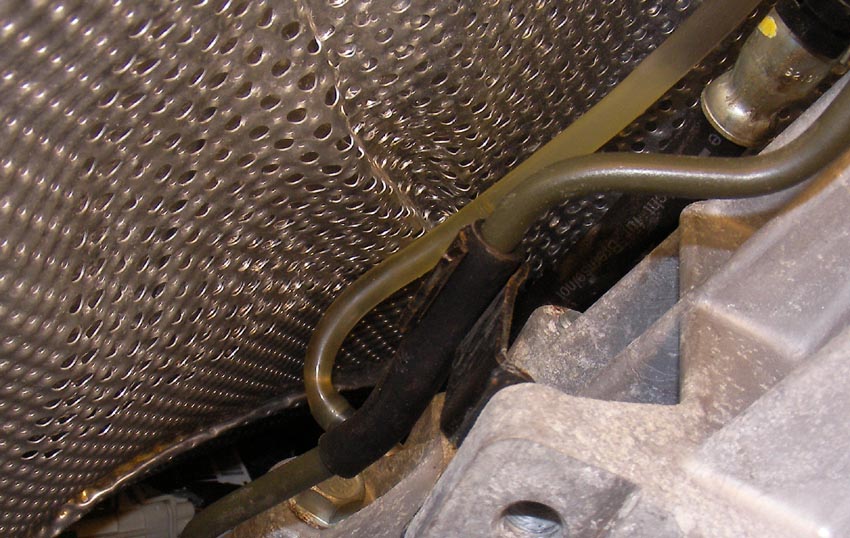

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image008.jpg





http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image009.jpg



Left is what came directly out of the reservoir, middle from the slave end, but mixed with cleaner fluid, right fresh fluid.

http://www.lotuscarlton.co.uk/vxr8clutchfluid_files/image011.jpg
