- The cylinder head inlet ports had already been
matched to the gasket profile.
-
-
-
-
- The next thing to look at was the injector
manifold which also needed to be matched to the gasket, and in turn to
the

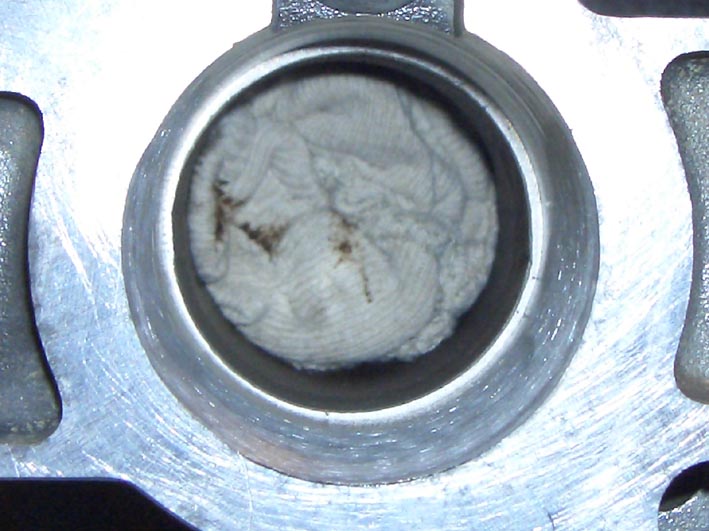

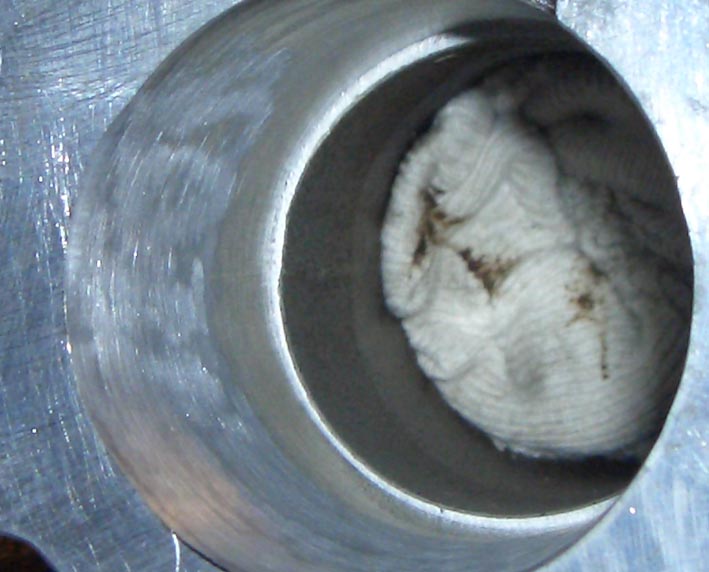

- inlet manifold itself. First the inlet
is bored to 39mm, then carefully matched to the gasket profile. Damico can
bore the
- injector manifolds, contact Ian Marsh Senator3024v@hotmail.com
for details.
-

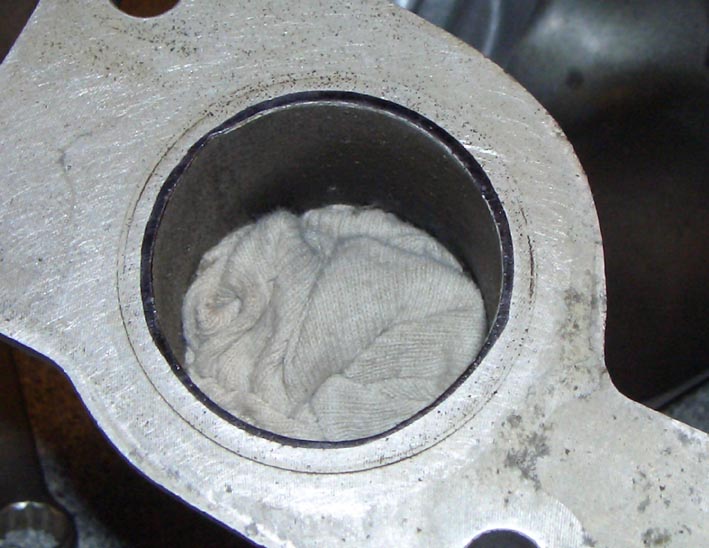

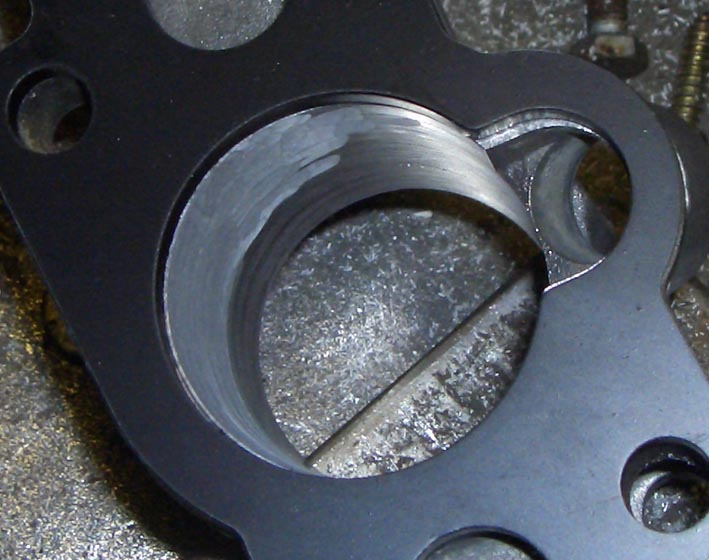

These pictures show the small amount of port mis-match
between the main inlet manifold and the injector manifold.
-

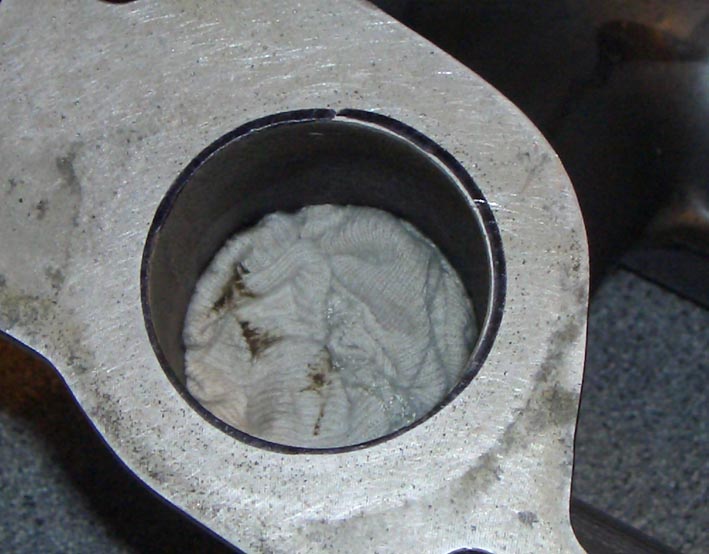

Black line indicates the port profile which needs
to be worked to.

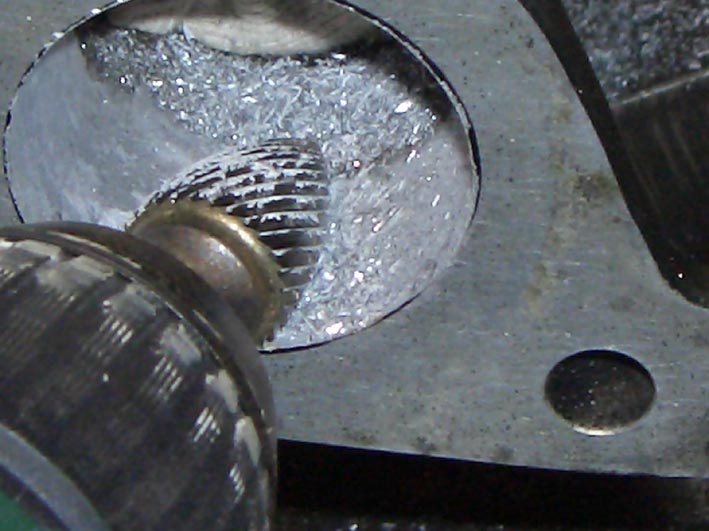

Carbide burr in action.

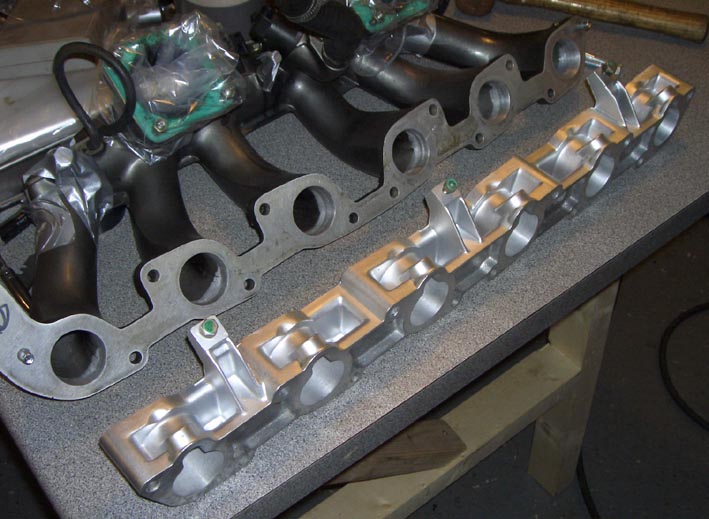

Finished awaiting assembly.

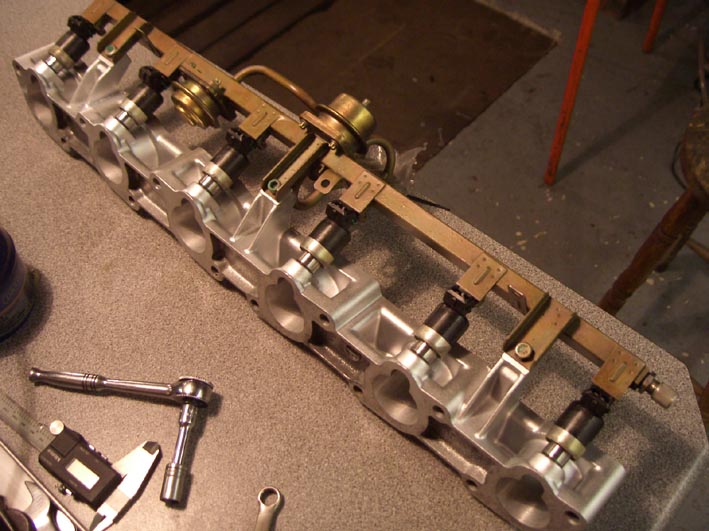

The injectors were cleaned
prior to assembly
-
