The following pages contain random pictures taken during the clutch work.

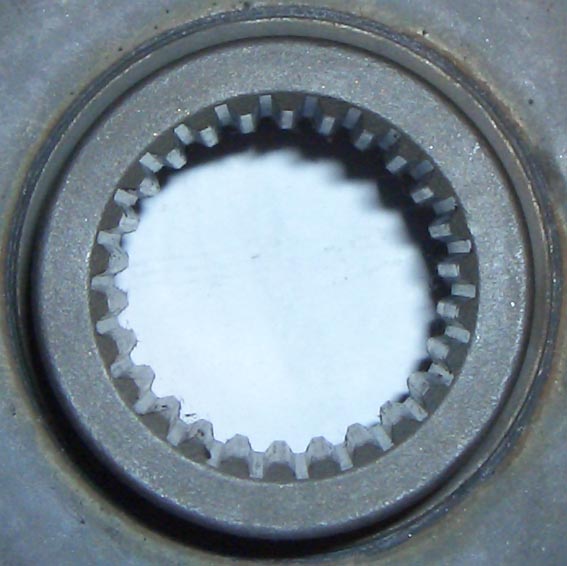

Friction disc splines
New friction disc thickness

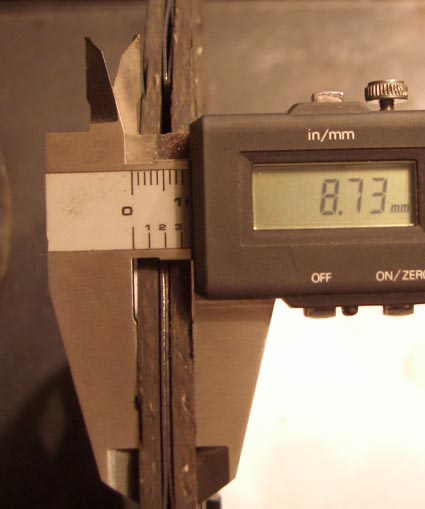

Old friction disc thickness.

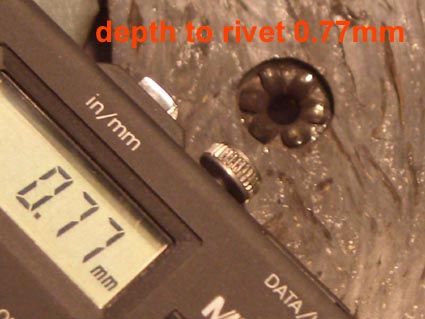

Depth to rivet 0.77mm old friction disc.

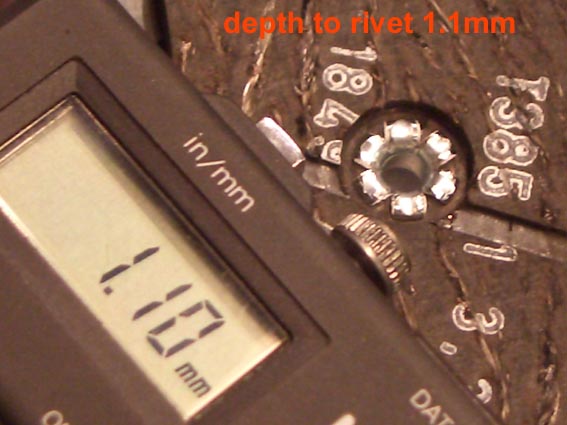

Depth to rivet for new friction disc.

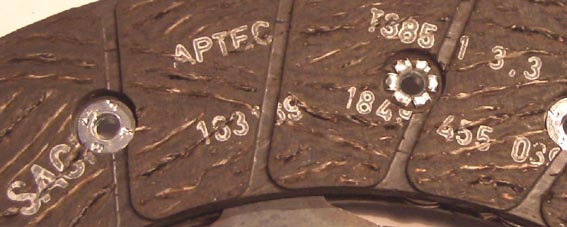

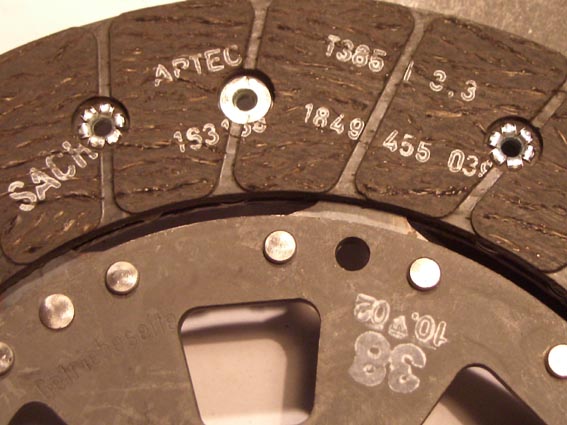

Friction disc ident markings.

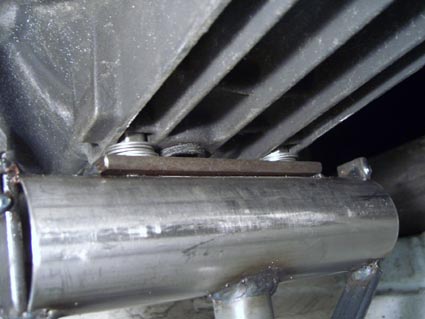

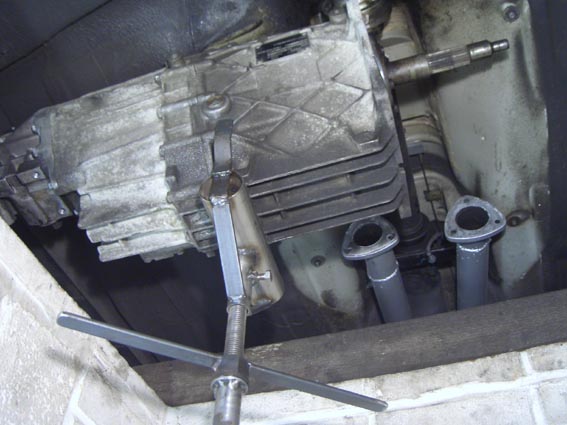

- 2 pins fit neatly into the gearbox casting appertures and prevent the gearbox
- from moving around on the stand, whist at the same time allowing it to pivot
- for removal and re-fitting. It does not balance at this point, it is prop end heavy.
I hope these pages have given you some idea's, certainly inspiration has come from work already
done by Gunther and Stefan, so my thanks to them.
