- Clutch Release Mechanism
and Bell Housing
- I want to find a way of
preventing the pin and fork seat from being exposed to all the dust
- within the bell
housing. I bought a new fork and a modified pin. I decided to mount a
plate
- over the face of the
fork pin end which faces the clutch and flywheel. First thing to do
was
- clean up the mount
face, ie grind away the cast lettering and generally deburr any casting
flash.
-
-
- New fork and modified
pin as supplied.
-
-
- Cleaned up.
-
-
- Next cut and shape a
plate to fit using M6 counter sunk screws, drill and tap the fork.

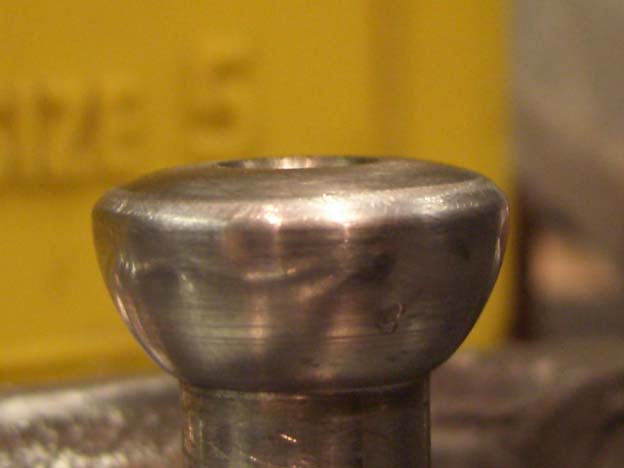

- I had to re-shape the
pin head because at full tilt the head would touch the cover plate, the
- material removed served
no function anyway.
-
-
-
-
-
- This is the pivot pin
seat in the fork, with just a small amount of lapping the actual seat
contact
- area seems very small,
perhaps only about 1mm, I lapped this using a drill, and then polished
- with brasso to give a
bigger contact area.........not sure whether that was right or wrong thing
to do
- but it's done now
;-)
- This picture shows the seat face of the
original pin and fork, much bigger contact area
- than the new pin and fork, glad I did
this now as without grinding/lapping the contact
- area was tiny.
- The modified pin has a
larger neck diameter, I will need to check that at full clutch pedal, the
pin
- neck does not foul the
fork hole rim. This checks out ok.
-
-
- Next was the other side
of the fork, although it faces away from most of the dust, I wanted to give
as
- much protection as
possible. This rubber boot was the only thing I could find, too big but
something like
- it will work. I have
some rubber track rod end boots being sent to me as samples.
- The sample track rod
end boot arrived today.
- With some modification
it fitted perfectly.
- Available from:- www.powertrackbrakes.co.uk
-
- I still wanted some way
of lubricating the mechanism every now and then as eventually the grease
-
would seep out, not too
worried about that in itself, it should only fall to the bottom of the bell
housing
- (if I'm lucky ;-)
- With a clamped type
boot there would be no need to have to re-pack grease, but I have no easy
way
- of doing this, another
plan forms...........
- I'm thinking about
installing a grease nipple into the side of the fork, but for this I will
need a hole in
- the bell housing to
insert the grease gun filler tube.
- I got hold of a second
hand bell housing (thanks Paul) which looks original, it has a crack in the
pin
- mount hole which is
very common.
I hope to have it modified
to the same spec as pictured in previous page.
- Another thing I noticed
was that I think there should have been flat which mates with the
pivot pin
- flat, this had been
crushed, probably because the pin was not in correct orientation, an easy
mistake
- as you can't see how it
goes into the hole during assembly.
- Back to the access hole
in the bell housing............
- Viewed from inside with
the fork laid in approx position, access looks ok.
- I want to use an M5
45deg grease nipple, then just a very small hole from the fork thread
breaking into
- the pivot seat.
-
-
-
- The clutch hydraulic
pipe is secured within a cast/machined hole in the side of the bell housing,
while
- it was off, I removed
half of it because then I do not need to split the pipe joint to remove and
re-install
- the bell housing, this
of course means no need to re-bleed the clutch slave cylinder. I'll find
some other
- way of securing the
pipe work.
-
- Having second thoughts
about the grease nipple, Graham C (cheers mate) has good idea, screw in
a
- straight bleed nipple
and attach a tube which exits from the bell housing inspection hole that I
previously made.
- Seems a better idea, did have doubts about this myself, ie
being able to tighten the 45deg grease
- nipple to correct
orientation might be a problem, there after if it broke off or became lose
could be a pain.
-
-
-
- Well, that is my plan,
I've had projects go tits up before now but got to start somewhere;-) I
have
- an idea that something
very similar has already been done but I've no idea who did it.
"The answer is out
there"........seems a very familiar phrase ;-)
- Well well, looks like
I've been duplicating experiments again, I just found out it was Stefan Engström
- http://www.lotusomega.se/public_html/mods/350clutchmod.htm
- who has already
perfected a method for greasing the pivot area, I might adopt this method
and even
- make another hole in
the bell housing for access, a straight run tube looks much better.
- Further, I just
contacted Stefan, he tells me Gunther with Lotus No267 was the first to
implement
- the grease system, so I
feel better that this is a tried and tested method.
-
-
Final mods and fitting
-
-
-
|
