- Clutch Release Mechanism
and Bell Housing
-
- The following describes
the final modifications I carried out while fitting the bell housing, fork,
pin and friction disc.
-

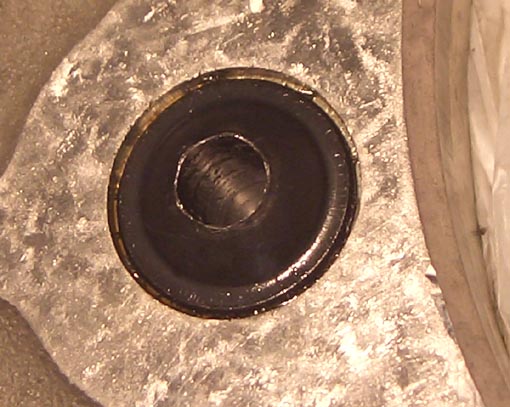

- First problem having
already removed the gearbox was that the clutch fork pin retaining screw was
very
- tight, the socket head
would have rounded straight away, so it was just as easy to pilot drill
through to the thread
- and then with a 8.5mm
drill, enlarge until the head of the screw fell off. The bell housing cannot
be removed until
- this screw has been
detached from the pivot pin. Normal "specialist" approach is to
hammer the f**k out of it with
- a cold chisel.
- According to my service
records the bell housing had been replaced within the last 12k, this was now
quite evident
- from the pristine
condition of the bell housing and pin which was very securely fastened and
properly located in the mount

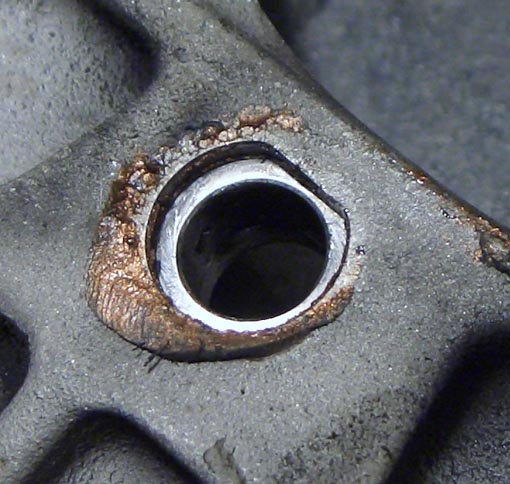

- hole. The "D"
locating flat clearly visible.

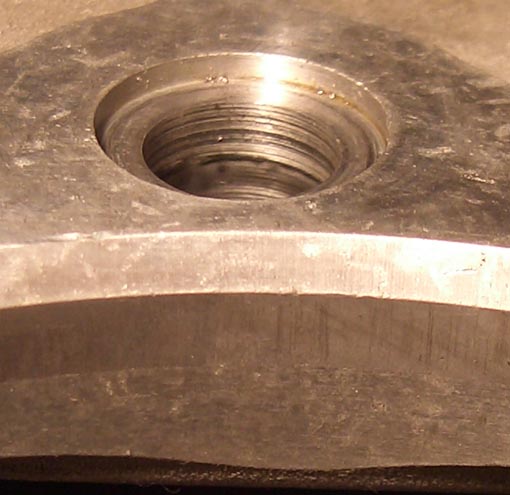

No cracks in this bell
housing.

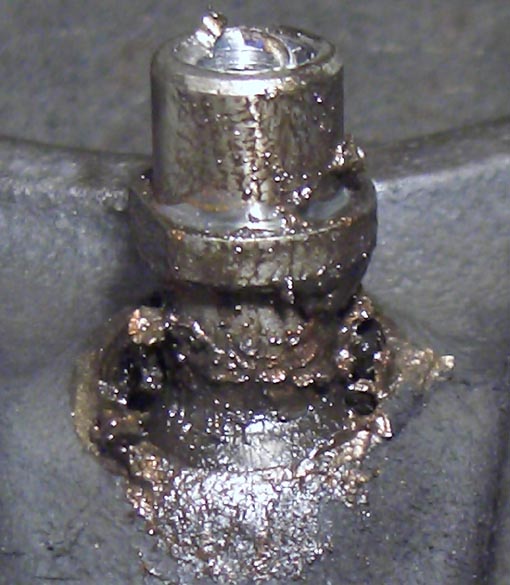

The pivot pin nicely
greased and plenty of it !.

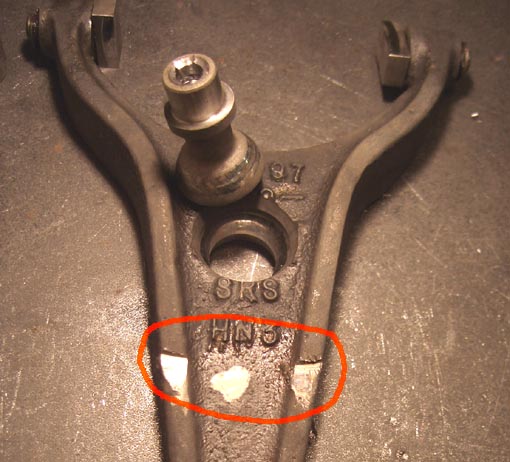

The fork showing some
battle scars.
The "T" piece
showing minimal wear, at least it had one dose of lube ;-)
