RAF Marham trackday testing
- Final test was a day at RAF Marham having a thrash around a runway track.
Data logs recorded via IPAQ. From these I extracted data for coolant temperature
and manifold air temperature. For direct comparison I have included plots from 2
previous years at the same venue.
Coolant temperature plots:-

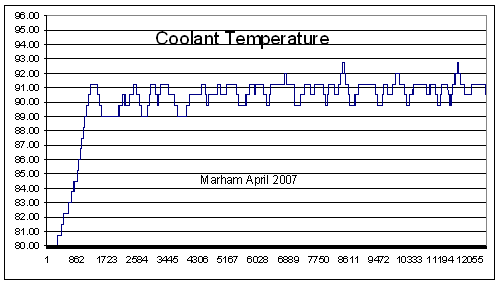

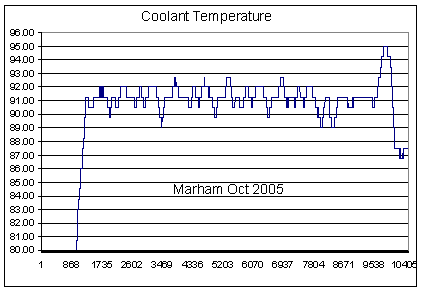

The first 2 plots show average temperture around 91.5degC, the last plot
from the recent trackday shows the average has dropped about 1degC.

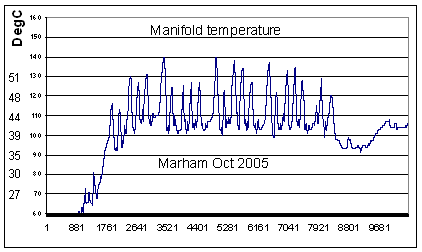

Following plots are for the manifold temperatures (post turbo).
- First of all the numbers from the data stream are not linear to temperature,
- having plotted the numbers used in the ecu a approximate DegC scale can
- be overlayed.
- Average Temps:-
- October 2005 45degC Ambient cool
- Sept 2006 49degC Ambient warm
- April 2007 39degC Ambient warmer
- April 2007 46degC Ambient hot (early afternoon)

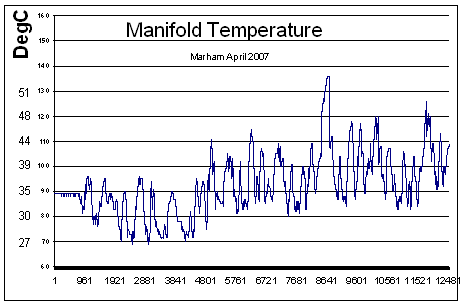

- Later in the afternoon when temperatures had risen, this plot shows
- MAT which is at similar levels to the previous years plots where ambient
- temps were cooler.
