- Engine Coolant Radiator
- Next job was to make up some hose blanking ends and a valve device so that
I could pressure test the rad.
- 20psi later, some soapy water and there were 2 tiny pin holes,
re-weld
sorted these out.
Time for some experiments......
-
- Coolant Volumes
- Now I have a sealed radiator I can measure the
volumes.
- Standard LC radiator = 2.9ltr, Aluminium radiator =
4.3ltr, so an extra 1.4ltr coolant capacity.
- Standard LC radiator is approx 0.5kg heavier than the
aluminium rad, but due to the extra coolant volume
- it will add an extra 1kg overall.
-
- Coolant flow.
- I measured the time taken for each rad to completely
drain into a bucket after filling with cold water on the bench.
- The std LC rad took 10 seconds to empty, the Aluminium
rad took 9secs, in other words the aluminium rad will
- flow 0.477ltr/sec compared to 0.29ltr/sec with only
gravity assist, not sure how this works in reality, but flow does
- not seem to be a problem.
-
- Airflow through core
- A bit simple and I have no idea in the real world how the results measure
against each other, the objective
- to prove that the new aluminium radiator was not more restrictive to
airflow than the LC radiator.

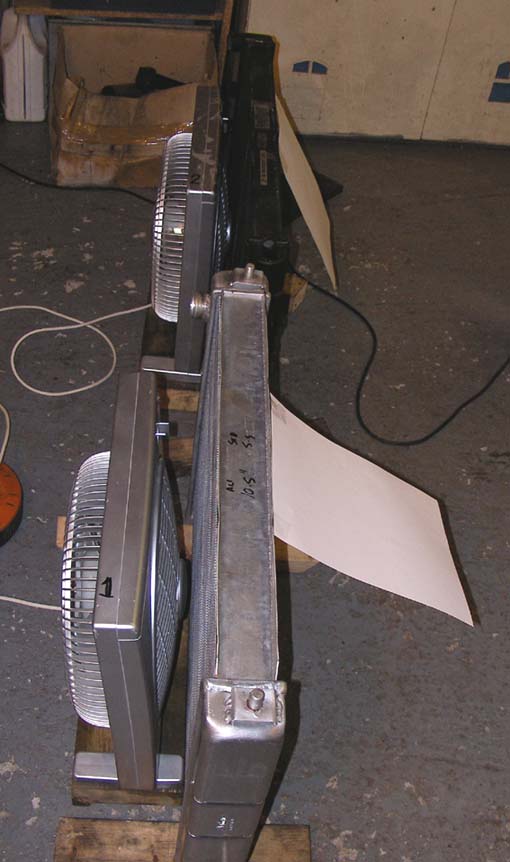

- A sheet of A4 paper sellotaped to the edge of each radiator, a fan behind
to blow air through, measure the
- deflection of the paper.......simple.
- Borrowed the fans from the kids (they get hot in the summer bless'em
;-)
- Set to run at same speed, the the paper on the aluminium deflected
10.5"
- whereas the LC radiator only deflected 5.5". I'm not saying the
aluminium
- radiator flows twice as much, but it does display less resistance to
airflow.
- Remembering that the aluminium rad core is 15mm thicker than the LC rad.
- Heat loss
- I suppose this is the important test, how does the aluminium radiator lose
heat compared to the
- LC radiator.
-
- Using a volume of water at 60degC equal to the LC rad volume (2.9ltr), I
filled the rad and left a
- fan blowing through it for 2 minutes, then drained the rad back into the
bucket and measure the
- temperature. Repeated for the aluminium radiator using the same volume as
the LC rad.
-
- LC rad 2.9ltr start 60degC, end 29degC
- Aluminium rad 2.9ltr start 60degC, end 30degC
-
- Then I repeated the experiment for the aluminium rad, but this time for
it's increased volume (4.3ltr)
-
- Aluminium rad 4.3ltr start 60degC, end 29degC.......interesting, so even
with the extra volume, it still
- reduced the temp by the same as the LC rad with less volume.
-
-
