- Engine Coolant Radiator
-
- After trying out the 1 1/2" stub connectors, I found them to be
too big, there would be problems
- especially fitting tight new hoses. After a search I found a supplier who
offered exactly the sizes
- I needed, so now with 35mm and 19mm connectors I can make a start. First

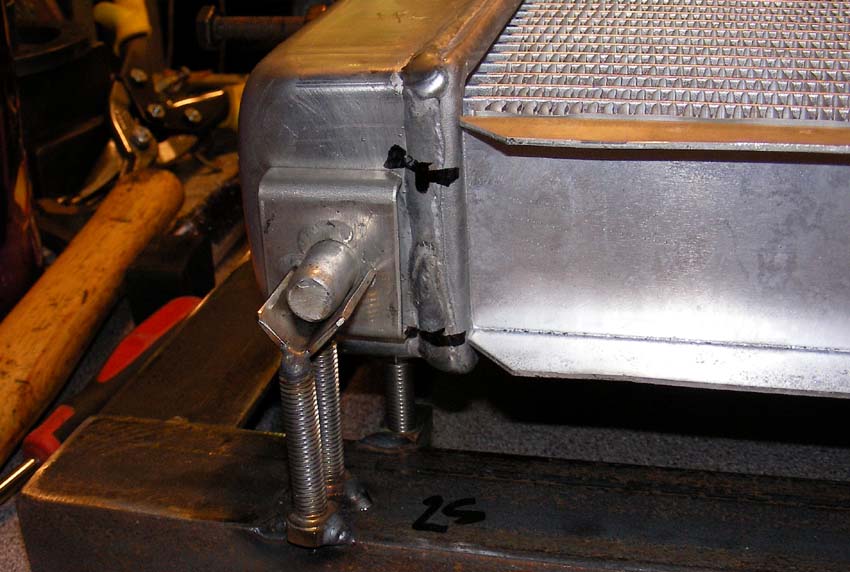

thing to do was construct
- a jig built around the standard radiator (in fact I used a C30SE rad from
senator because the bottom
- location lugs were to be moved to match, the side lugs were in the same
position on either radiator.
- Holes were cut using a 35mm dia starret hole saw, and a carbide burr to
finish cutouts to size.

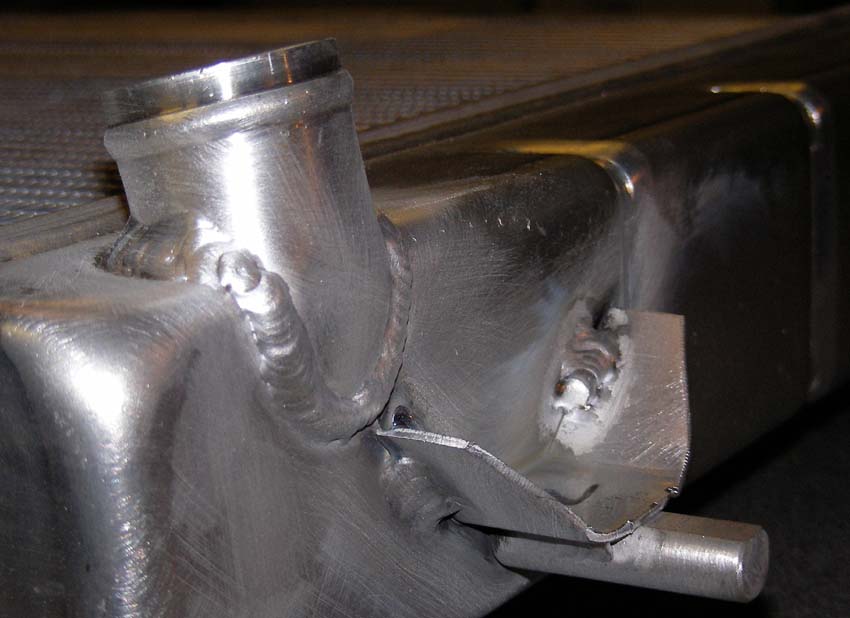

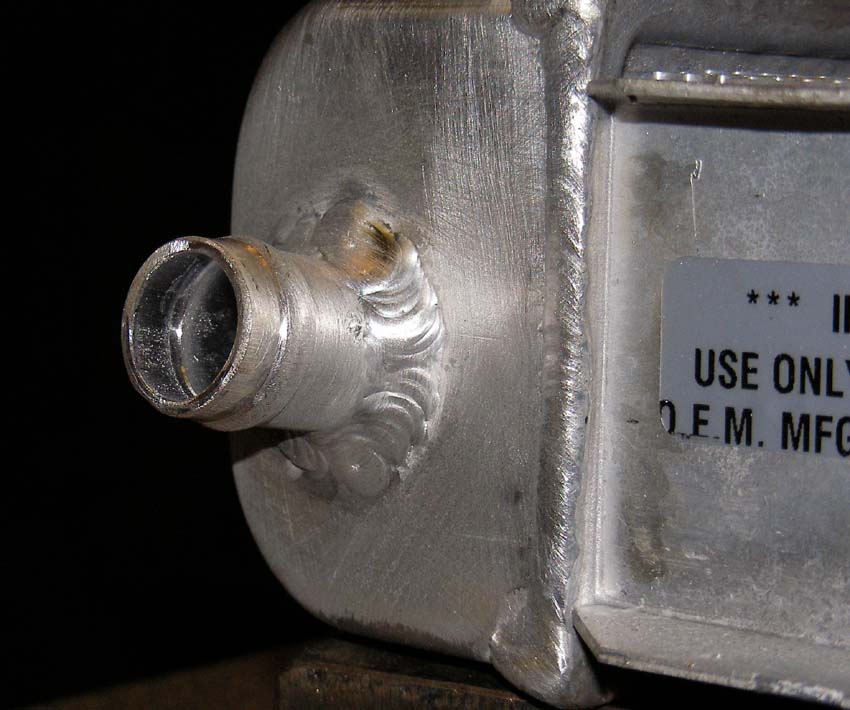

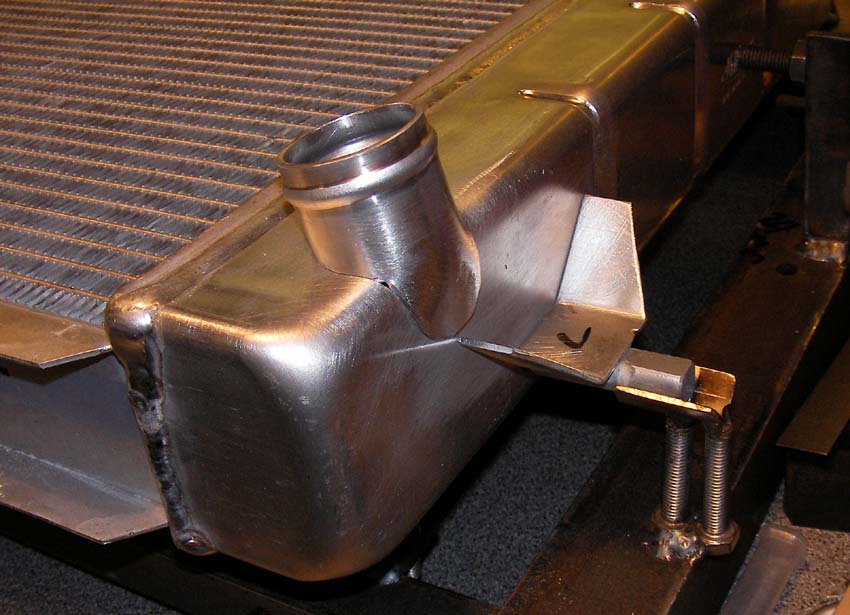

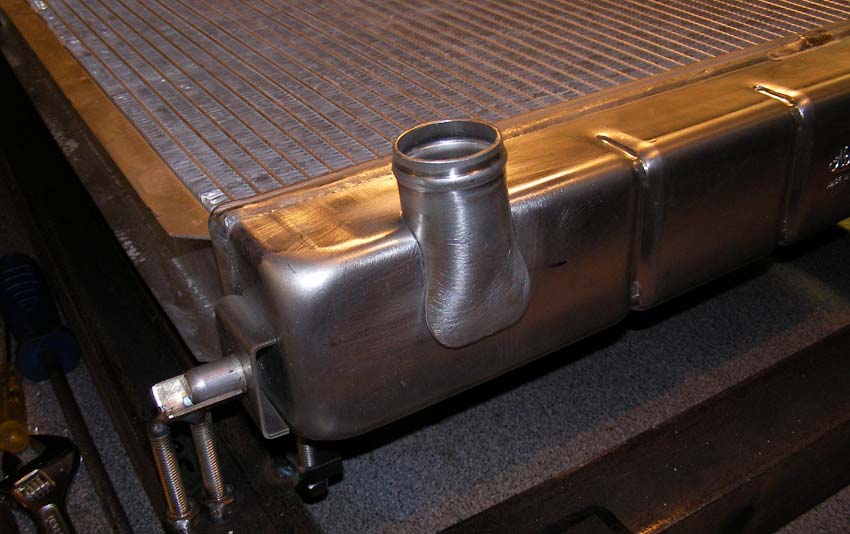

Stub pipes cut and shaped to fit, look slightly odd because they have to
overhang each side.

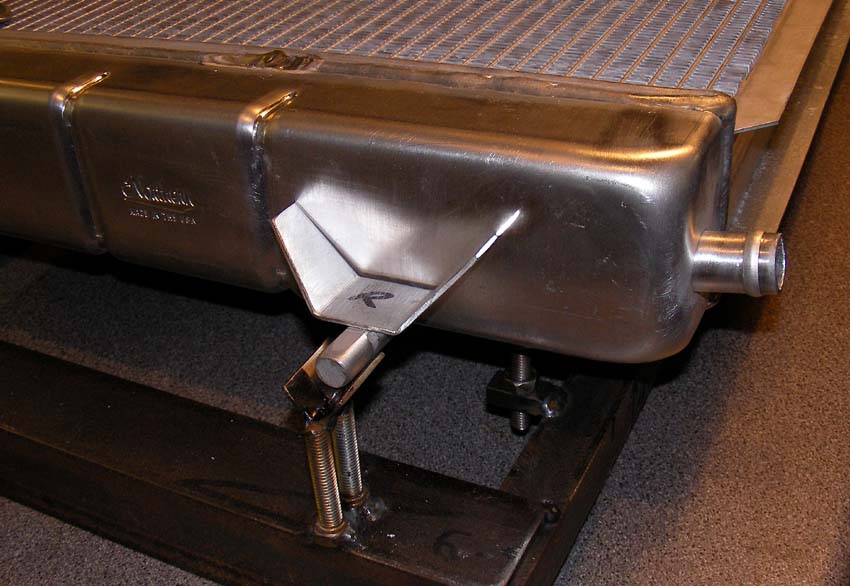

Mount brackets with lugs to fit existing rubber mount points.

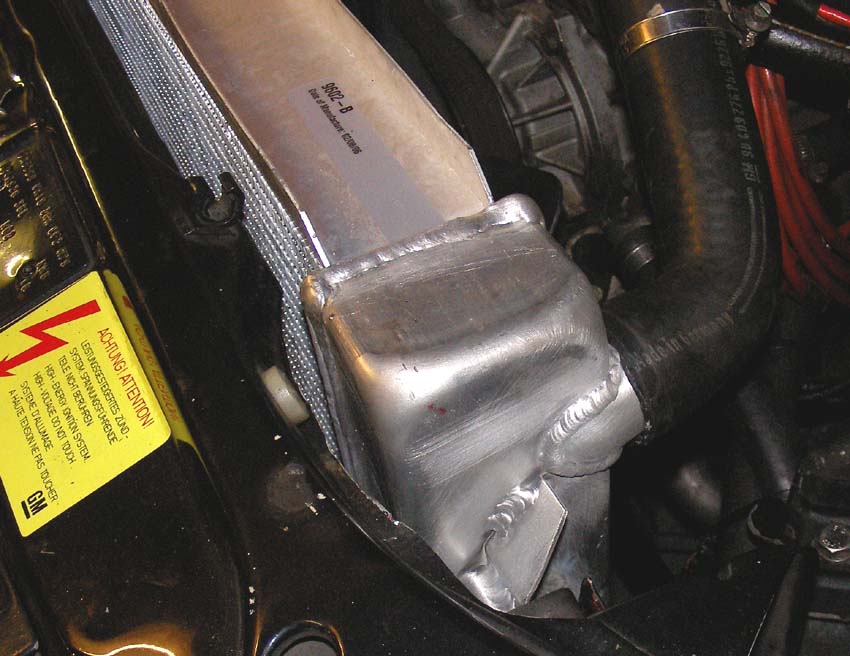

Blimey...it fits ! (some red rubber grease helped too)

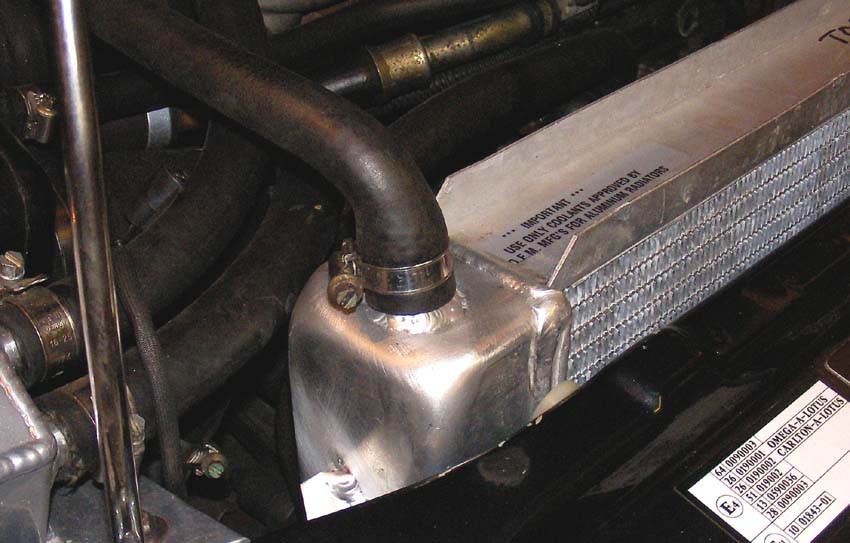

Not entirely necessary, but the hose will need slight trim
to take into account the extra rad depth.
I would have liked the rad to sit further towards the slam panel by about
3mm, will adjust the mounts and jig.

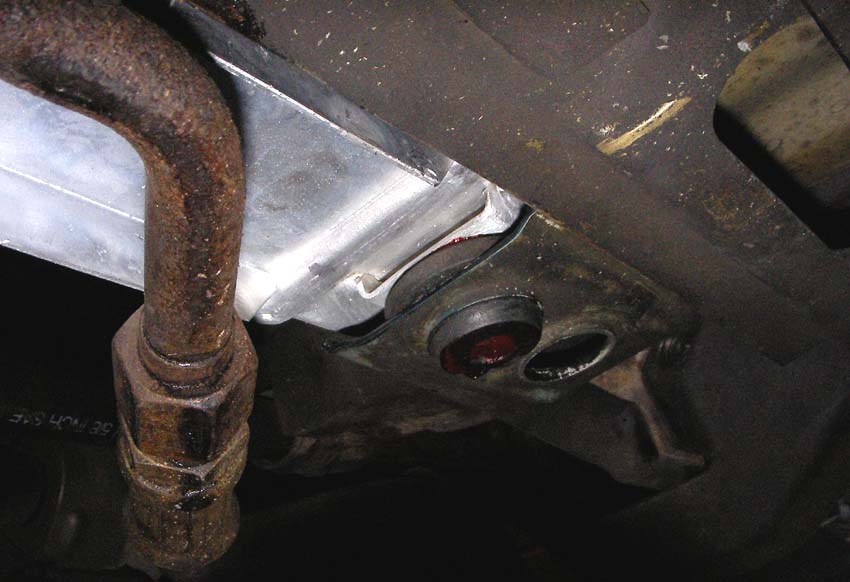

Ok from underneath.
