- Some early results
- I had a dyno session booked for 25th March at
SAS.
- I was advised that while initial results
looked promising, the fueling was a little lean.
- Prior to the run I'd not been pushing the
engine too hard as I did have a feeling that this
- would be the case based on experience with
similar head work on C30SE engines.
-
- However I should have had a little more faith
in the ecu programming and learning capabilities
- to push harder. SAS used a wide band
lambda sensor and readout that indicated the lambda.
- Looking around the internet I found a product
made by www.innovatemotorsports.com
- which is a kit containing the wideband lambda
and integrated display and data logger (LM-1).
- Another member in our club already had one of
these units, good enough recommendation so yet
- another ebay purchase is made.....
-
- So now I can look at fueling during my own
test runs and record the data to view back home.
- With each run I pushed a little harder, and
did find that the fueling became richer, but I still regarded it a
- little lean in places.
-
-

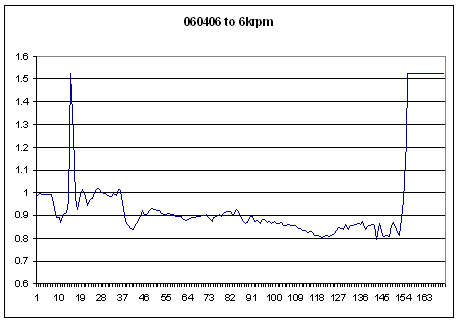

- Approximately I'm looking for a drop in lambda
from 0.9 to about 0.82 as
- boost rises to max, this plot shows a eventual
fall to 0.8, but then it
- rises again with rpm.........what rpm ?, yes I
know, can only estimate the rpm
- for now, the LM-1 kit with a auxillary device
will allow logging of rpm and some
- other inputs, ie map would also be good. I
will be ordering this very soon.
- Also what I needed was some data from a
standard LC setup ;-) , big thanks
- to Phil Gummery for allowing me to weld a lambda boss into his
exhaust, then
- a few runs up the road and some data logging
-
- The plots do look quite similar, but without
rpm or map it's difficult to correlate exactly
- what is happening.
-
- I have also been taking logs of the ALDL data
stream, which MR had checked over
- for me, one noticeable point was a lack of any
combustion knock...actually a good
- thing !, but unusual for a LC to have so little, for now I can only put
this down to a
- cleaner air charge, I think before quite a bit of oil vapour was being burnt.
-
- By 8th April 2006 I covered approx 500miles,
power feels quite good.
- Time for another spin on the rolling road at
SAS in Aldershot, during a club rolling road
- dayto find out exactly what power I now
have.
- This time Tim at SAS bolted a sensitive knock
sensor to an inlet manifold stud, he
- was able to monitor for knock through some headphones. He commented
that while
- there was a little, it was insignificant and would not have been picked up by the LC
- knock sensor, in
other words nothing to worry about. I did manage to get a fueling
- plot from one of the dyno runs:-
-
-

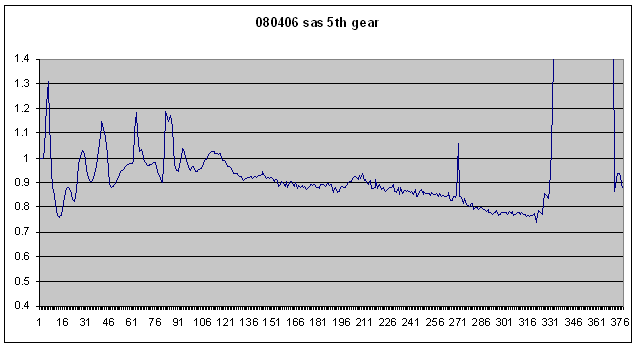

- This plot was taken during a 5th gear run
accelerating to 172mph, something not possible on
- the open road !
- It also contradicts the earlier plot which
shows a lean part at higher rpm, while this one shows
- a rich plot for the same period. However there is
still a lean part mid-way. I think the lean spike
- indicates either a miss-fire
- as the lambda is measuring the un-burnt
oxygen, or there really is a very lean snap ??
- I really do need to plot rpm/map/tps ect
before any real judgment can be made about where
- to add fuel.
-
- Ok so here's the dyno plot from SAS :-
- 429bhp and 416ft/lb torque, I'm quite pleased,
especially if you compare to the plot from last year:-
-
-
-
- I have some way to go yet though.......
