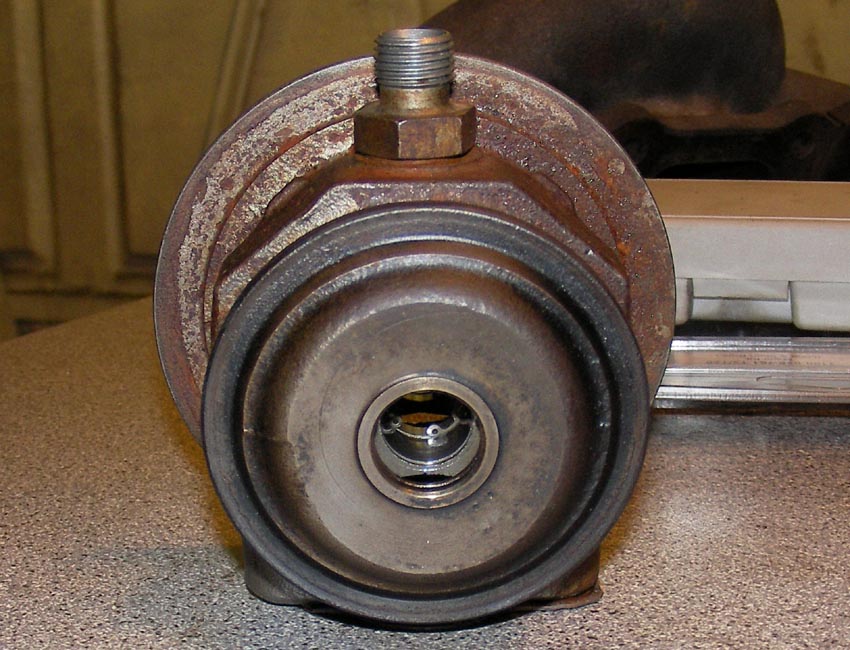

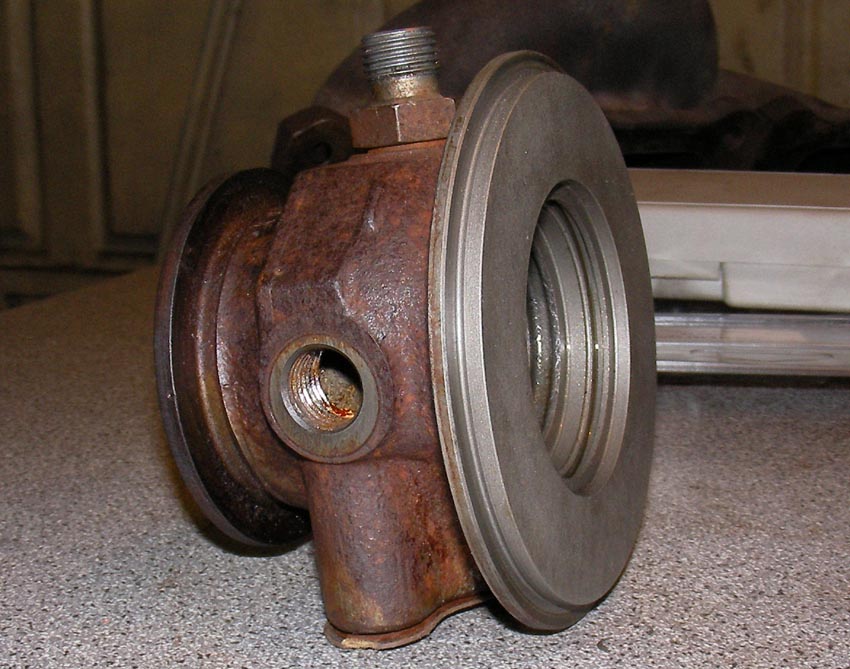

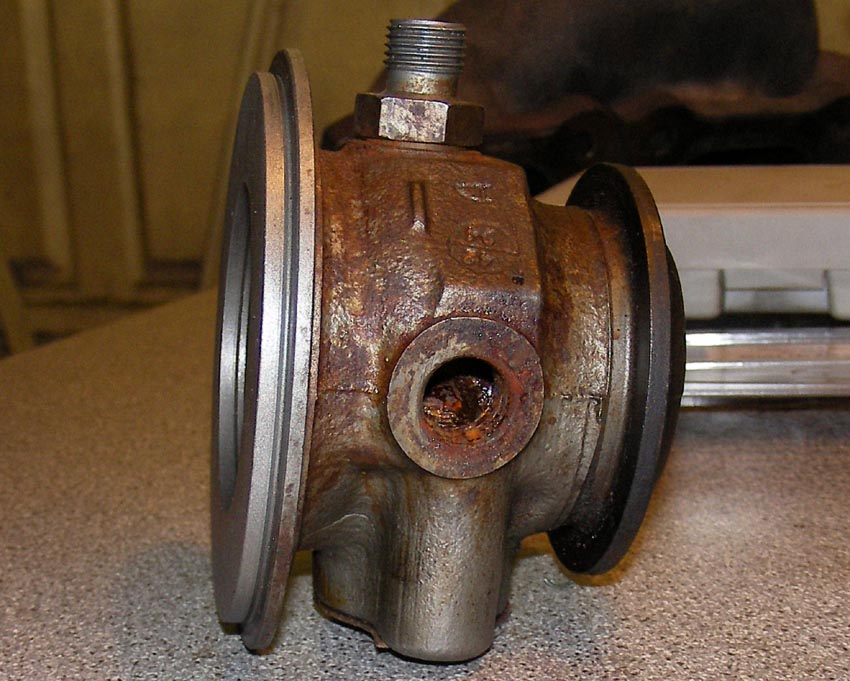

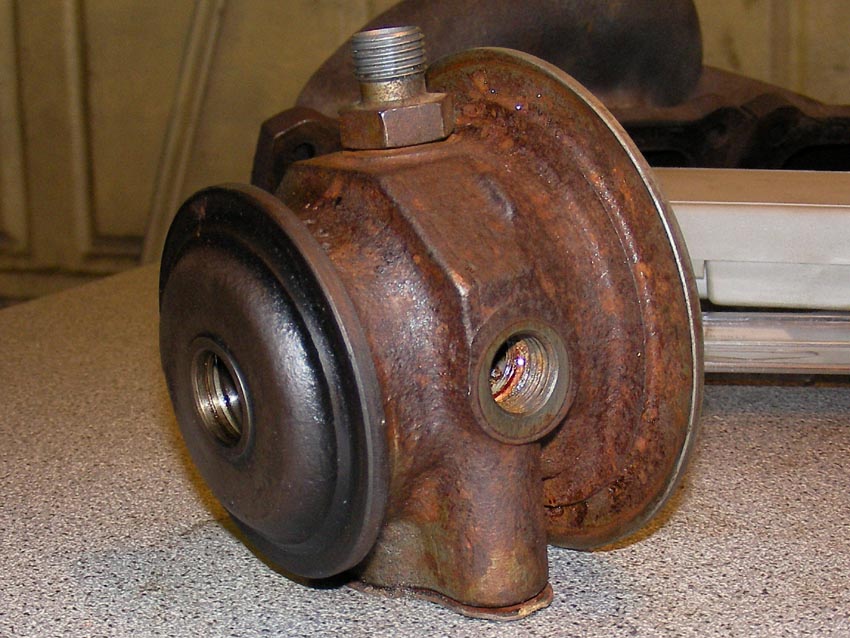

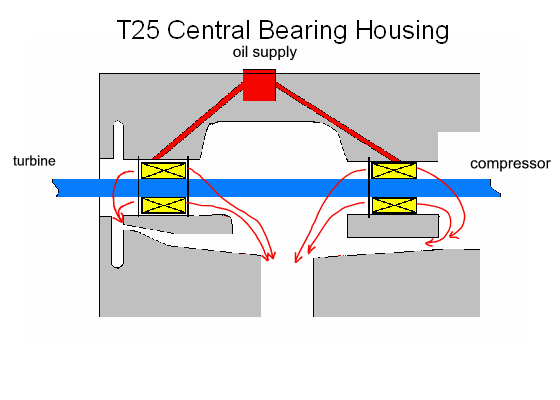

- Central Bearing Housing
- All of the oil entering the CBH should drain into this hole, down into the
oil drain pipe and back into the sump.
- The compressor end looks to have and easier job of draining away than then
the turbine end.
- The only improvement I can see here would be to round off the edges of the
hole.
-
Turbine end

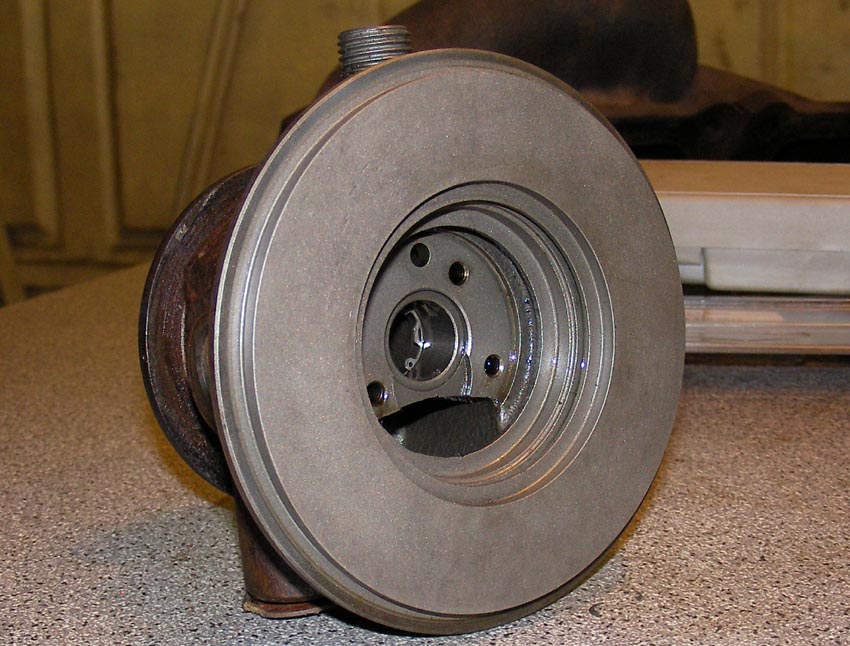

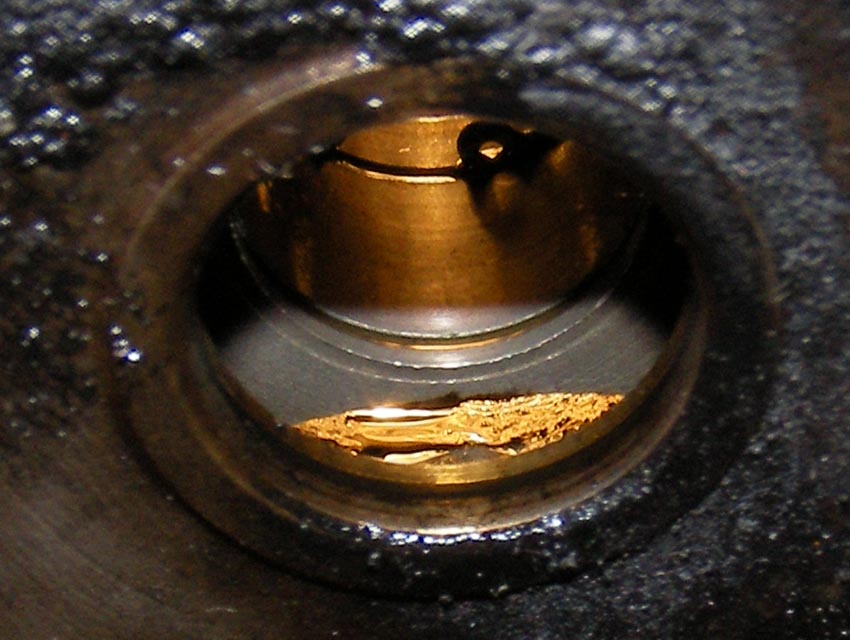

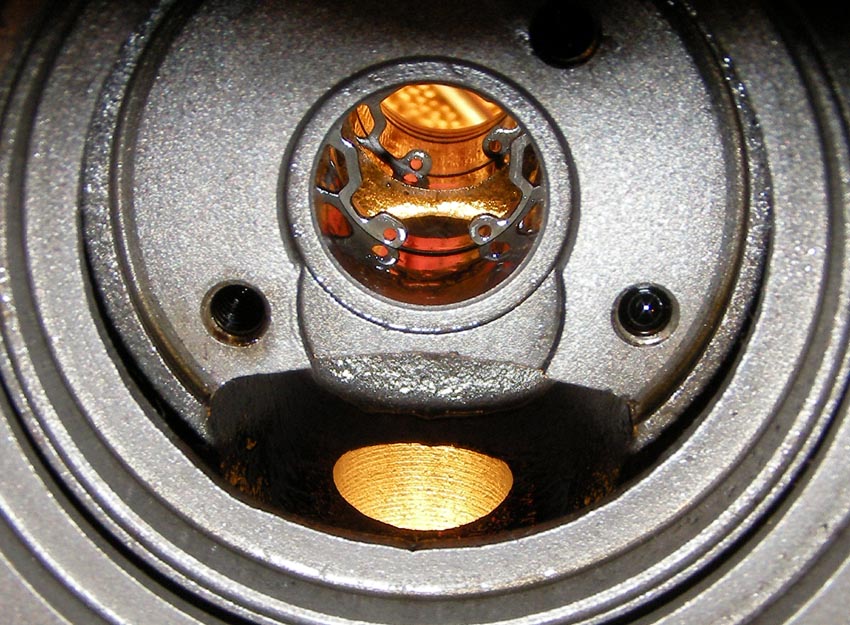

View looking up through the oil drain flange.

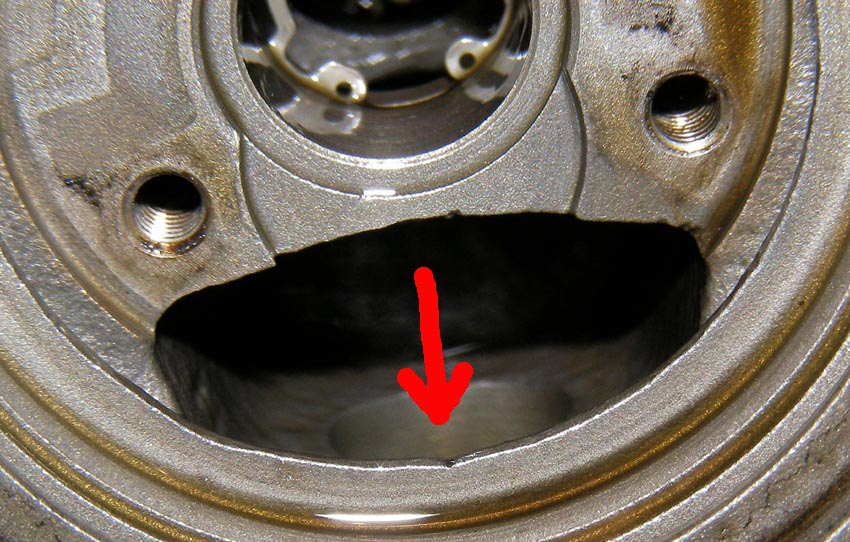

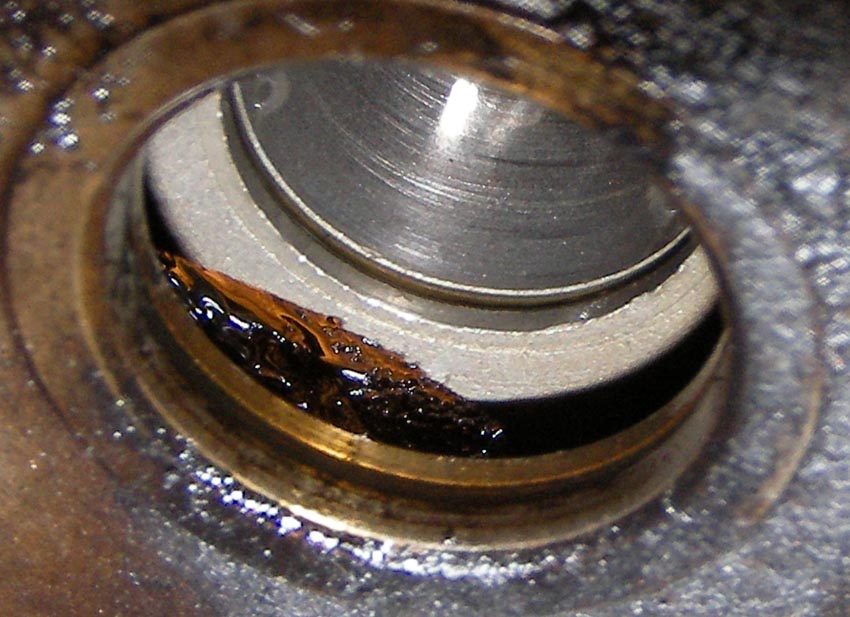

Oil drain hole into main cavity.

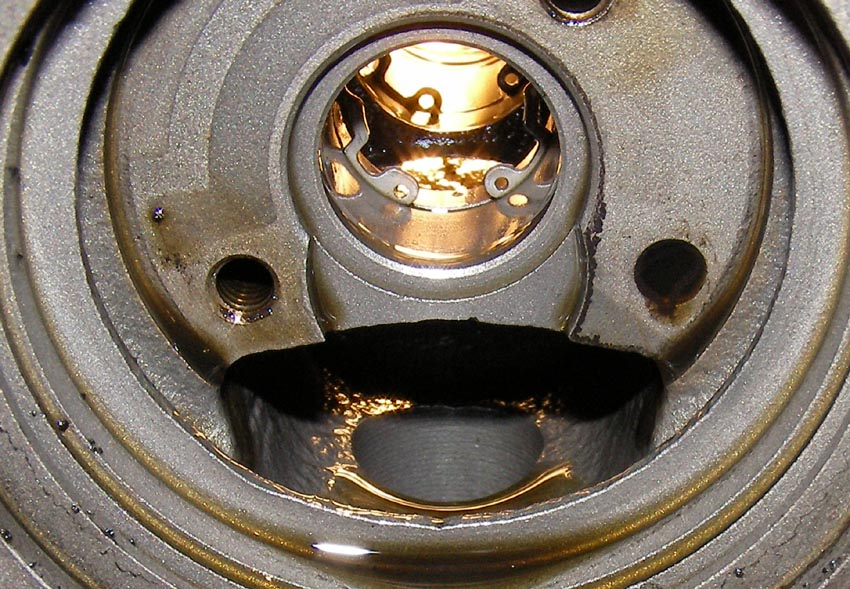

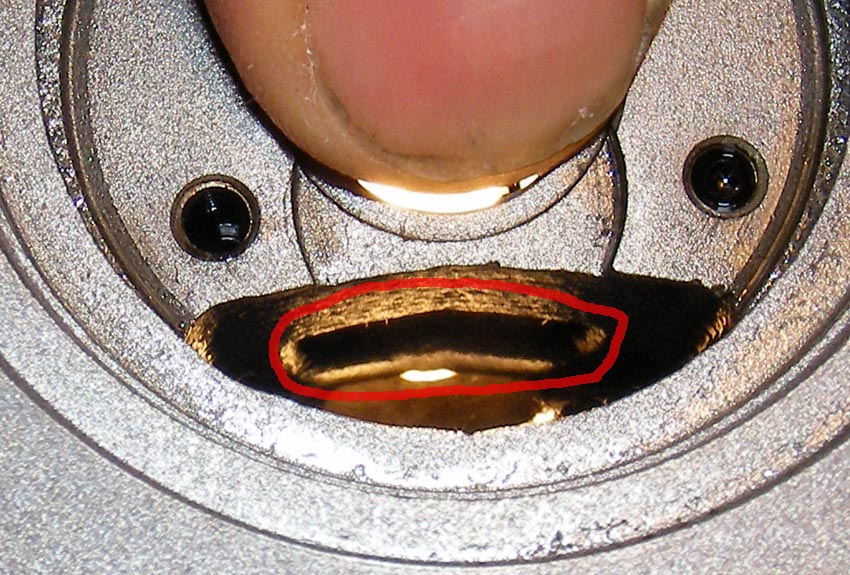

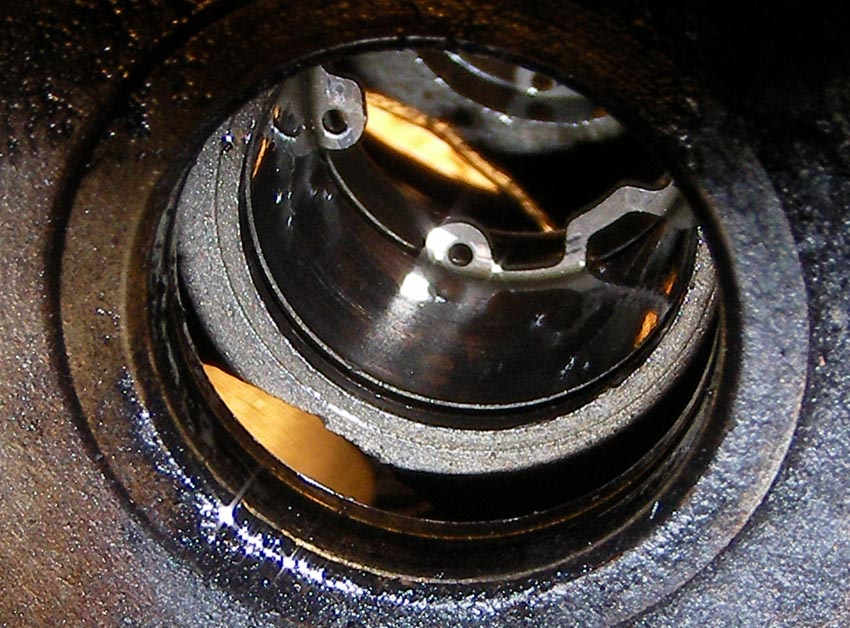

Oil drain into the main cavity from the outer end of the turbine end

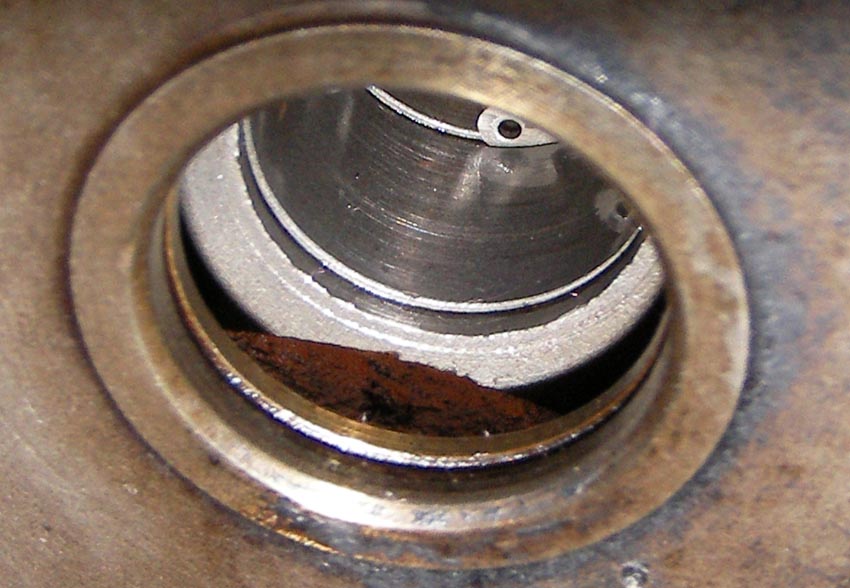

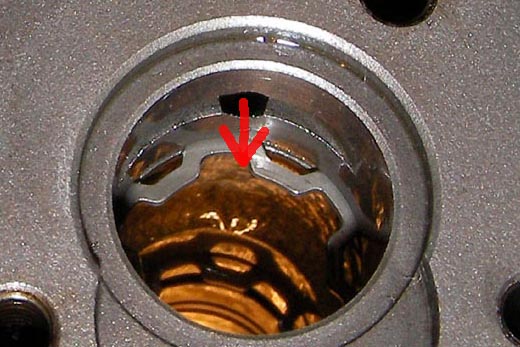

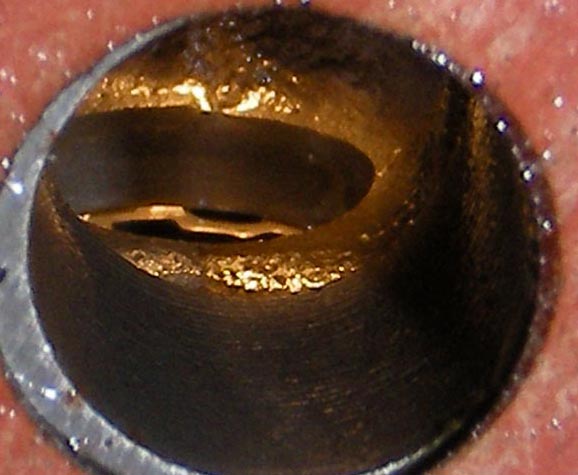

Oil path to the seal ring and out to the exhaust.

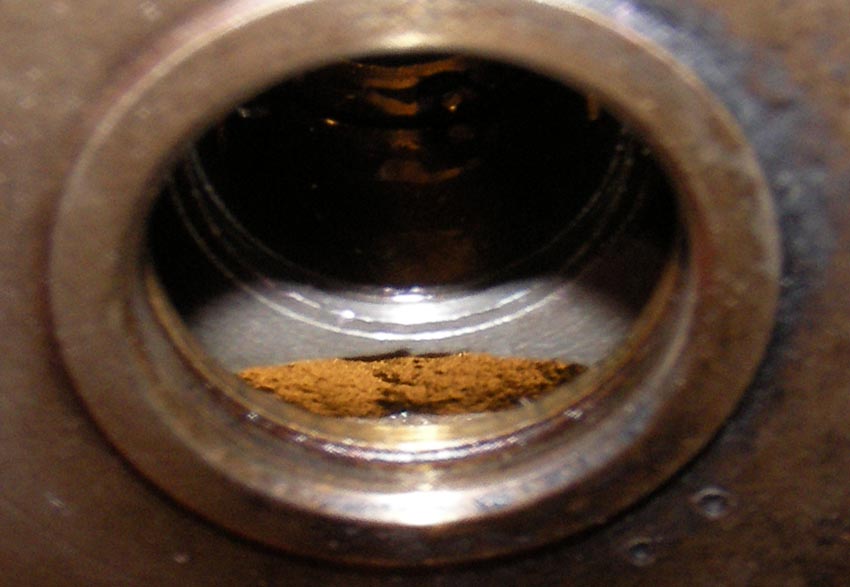

Oil feed to the journal bearings, each journal has it's
own feed.

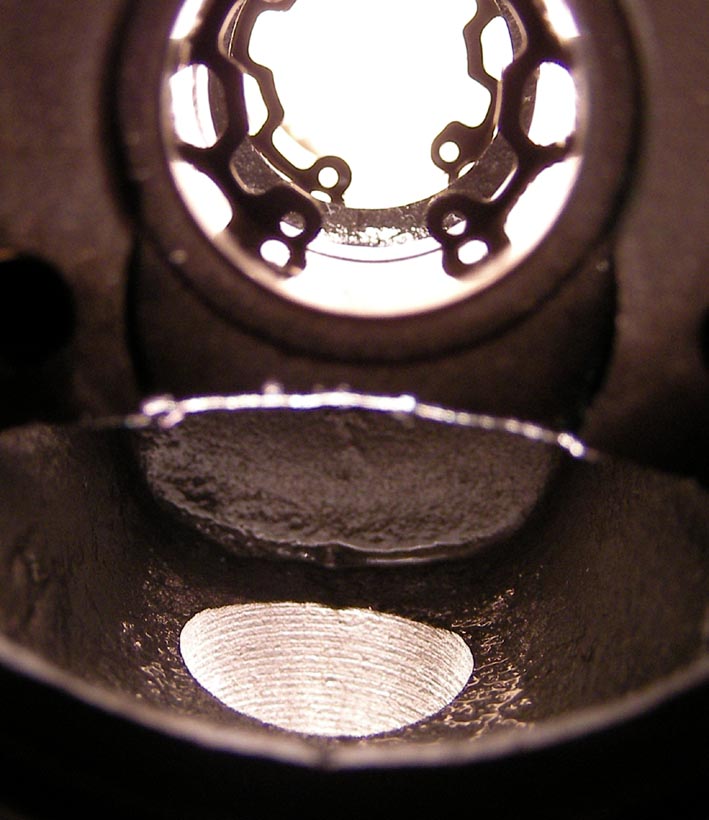

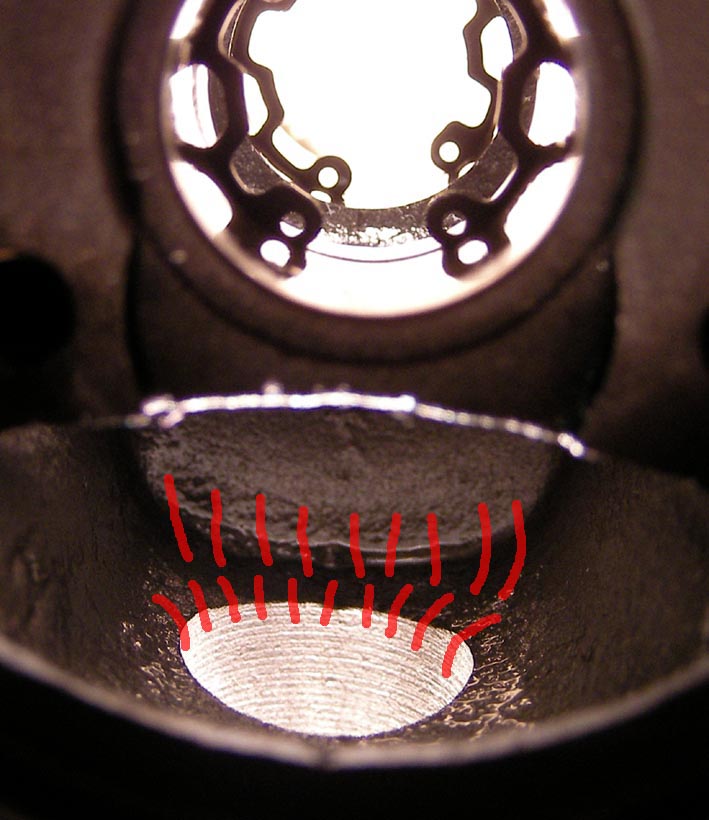

Possible improvement to the main drain hole, round off the sharp edges and
remove the casting ridge.

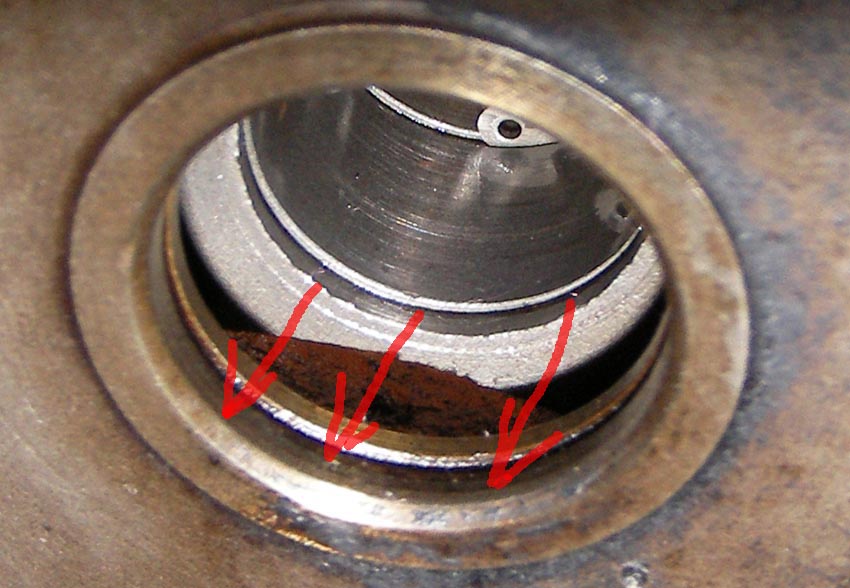

Oil coming down this slope is from the turbine end.

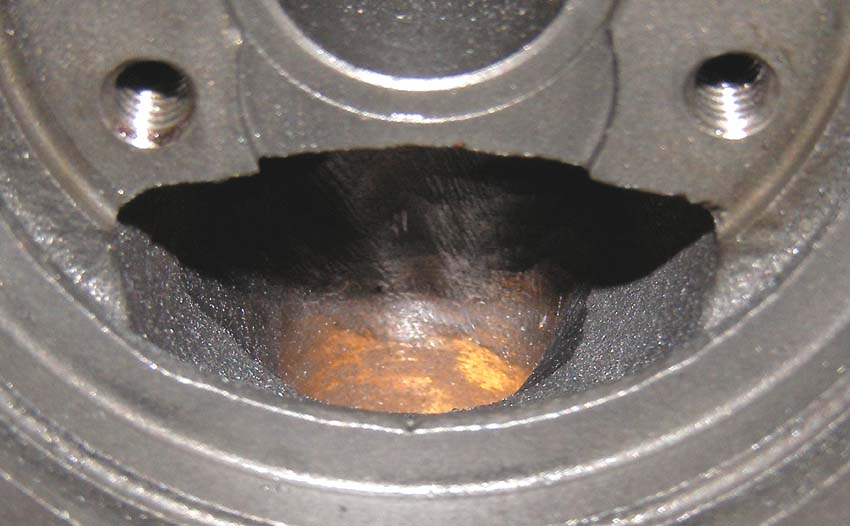

- Using a 10mm diameter round carbide burr held in a
drill which was in turn clamped in a vice, I
- rounded the edges of the oil drain hole.........rightly
or wrongly..........is this the "drain mod" ??
- A bit simplified !, but the main problem I see with oil
drain is indeed at the turbine end, the distance from the
- bearing to the piston ring seal is very short compared
to the compressor side, also, there is only a crescent
- shape exit hole for oil that seeps through the bearing
to drain back into the centre of the housing. Not sure how
- to improve that hole as you can only see it from the
turbine side, and the risk of damage to the piston ring seal
- surface in the housing is huge. The actual drain hole in the
middle could have the edges rounded off and the
- slope smoothed a little..........
