GT25R Fixing the down pipes to turbine
flange

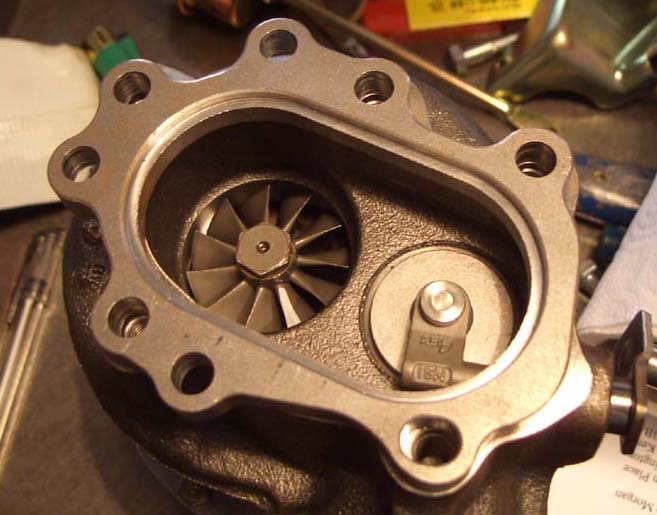

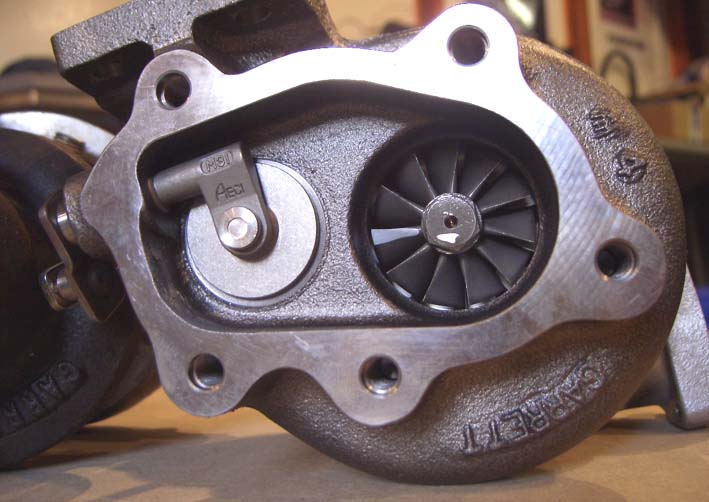

- The turbine flange is a 5 bolt fixing with
what looks like quite an awkward shape, the wastegate looks
- better spaced from from the actual turbine,
when compared to the lc turbo it looks to be much more efficient
- in terms that the lc turbine exit is partially
obscured by the round exhaust exit to start with. The GT25R exit
- is straight out into the downpipe.

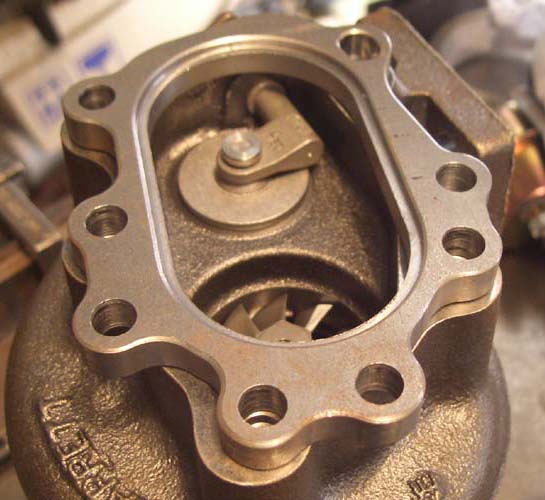

I bought some universal flange adaptors
(GT25R/GT28R) but I'm not happy with the fit or the extra holes.

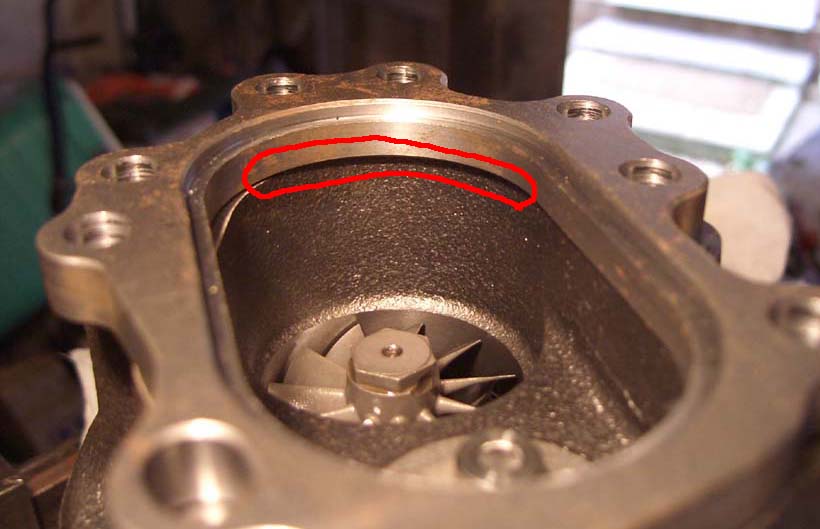

There was quite an overlap at the turbine exit
which presented a sharp edge that the gas has to step over.

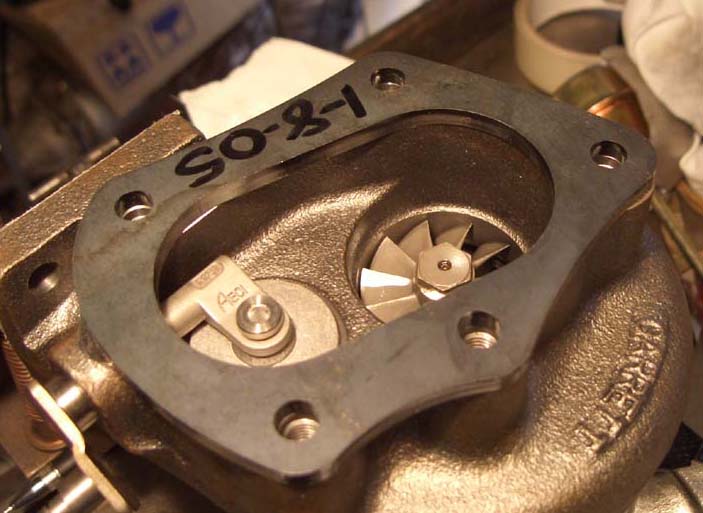

Using the flange as a pattern I re-designed the
profile to more closely match the flange face of the GT25R.

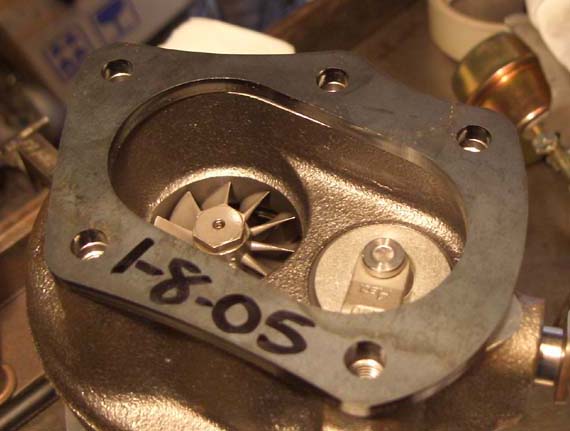

- This was just a pattern to get the profile and
hole spacings correct, the final version will be 10mm thick and I
- need to get the milled recess added to accept
the pipework, this should aid welding and allow me to fuse
- the joint from inside aswell. I'm led to
believe that the oval hole is the equivalent to squeezing a 3" round
tube
- into the same shape.
- 30/08/05

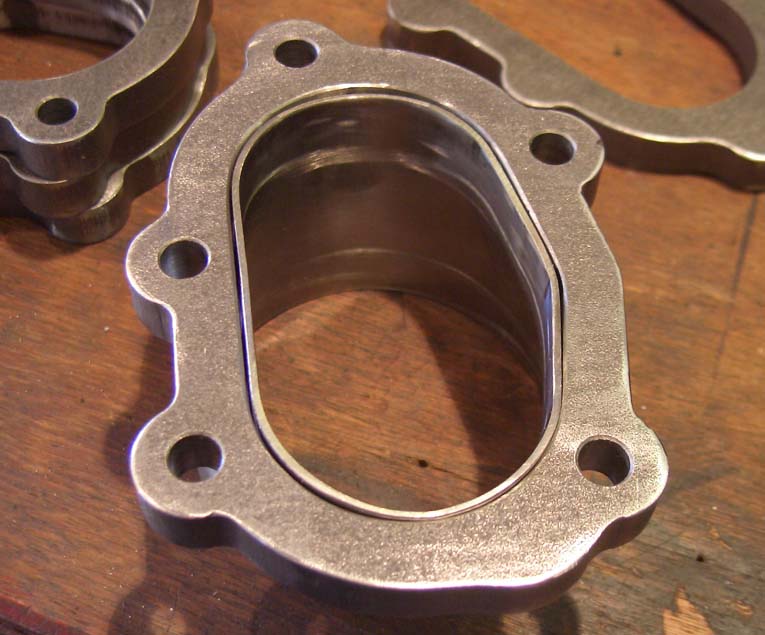

- Change of plan, flange will be 12mm thick, no
milled recess as the tube will push all the way through, fully
- welded around the inside and stitch welded on
the outside to clear the the fixing holes (nuts very close to tube)

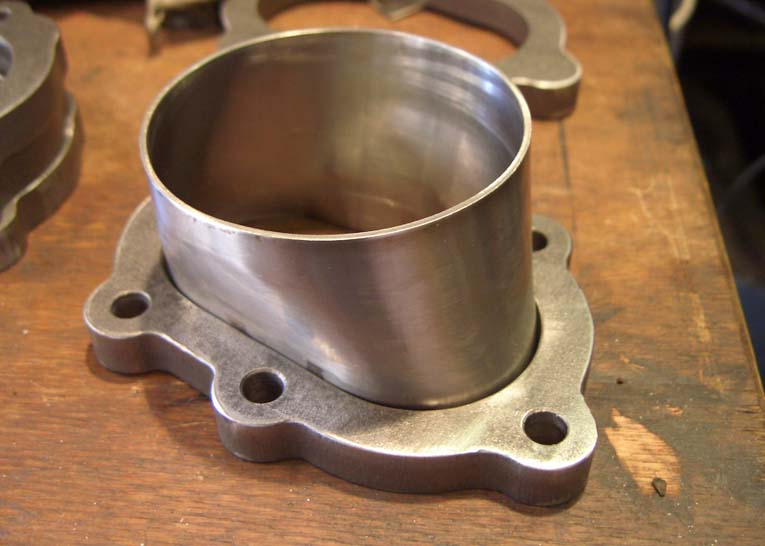

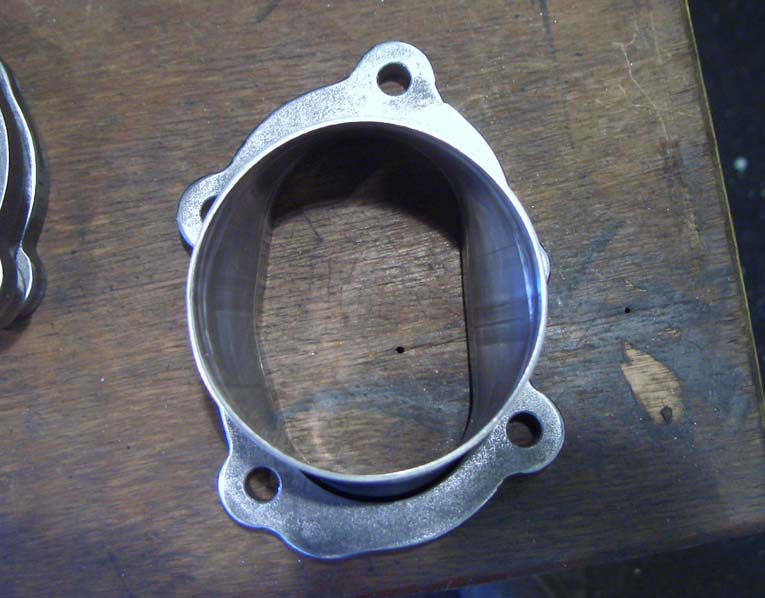

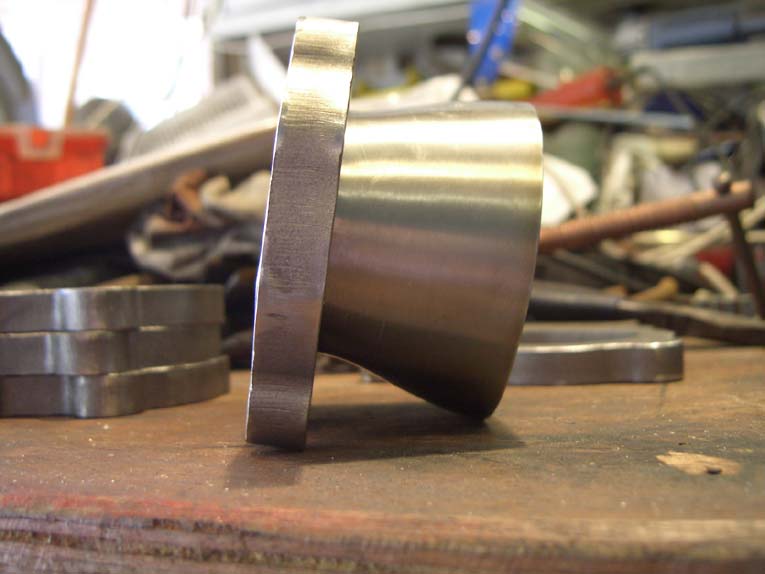

- Pictures show the transition tube which has
been formed to go from oval shape to 3" round in a little over
2"
- length, prior to welding.

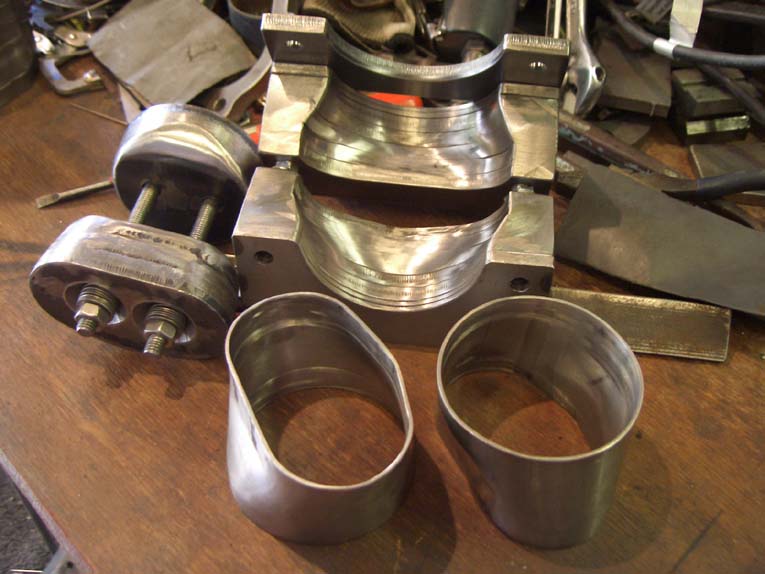

I had to make some tooling to prevent severe
deformation of the tube leaving kinks and dents.
- The rear turbo has a very sharp change from
almost horizontal out to near vertical down, this may
- be a bit tricky. I've seen pictures of the transistion part
which has a separator plate to keep the
- main turbine exhaust gas away from the wastegate gas until further down the
exhaust down pipe.
- I may try a compromise along these lines.

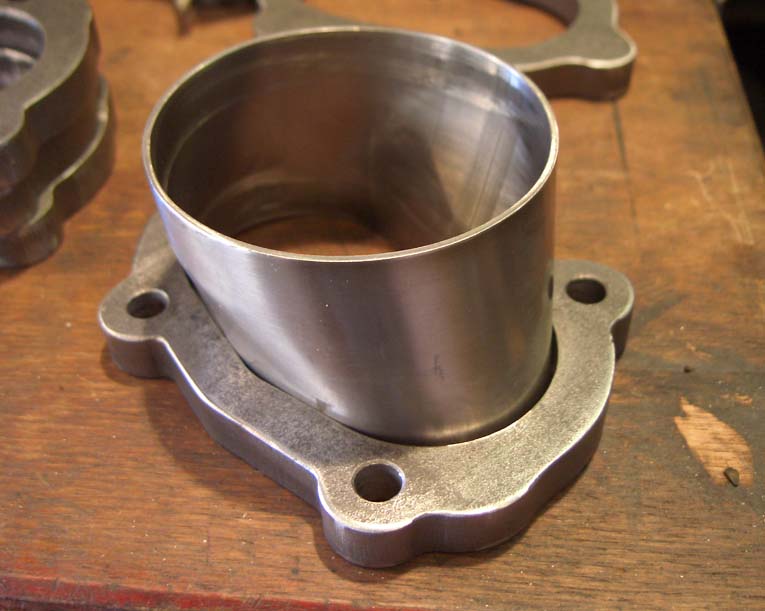

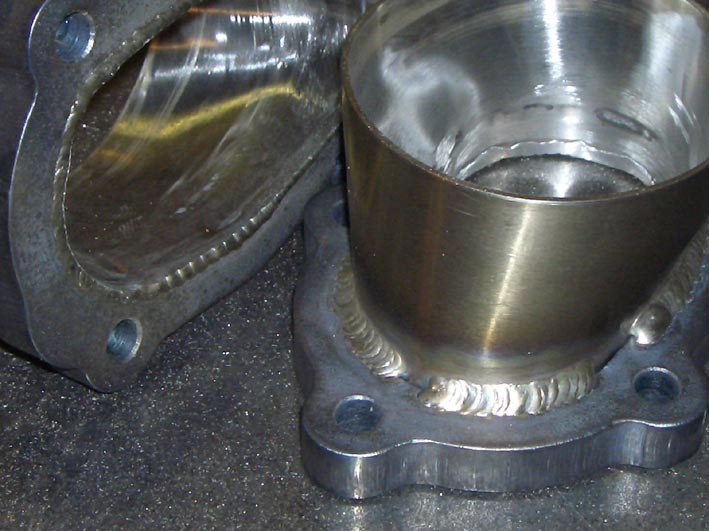

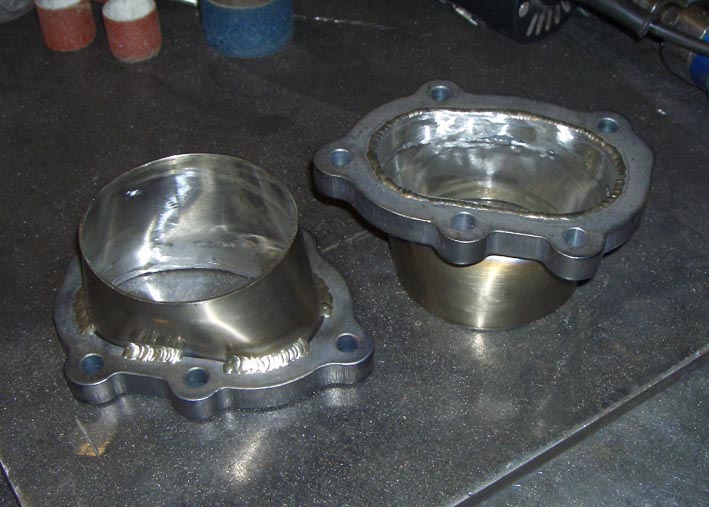

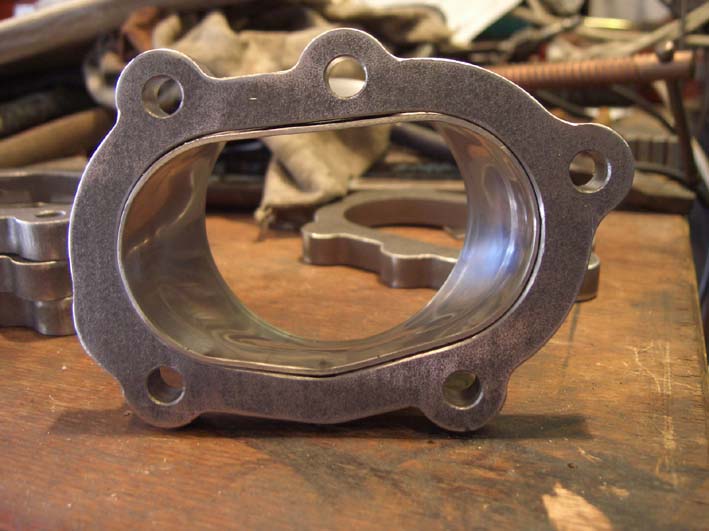

- Welded flanged transition tubes to 3"
round. Fully welded on inside and stitch welded outside with
- gaps to miss the nuts. Just need to have the
mount face machined flat. I had to buy special inconel
- 625 filler rod, required for welding dis-similar
mild steel to stainless steel to withstand the high
- temperatures.

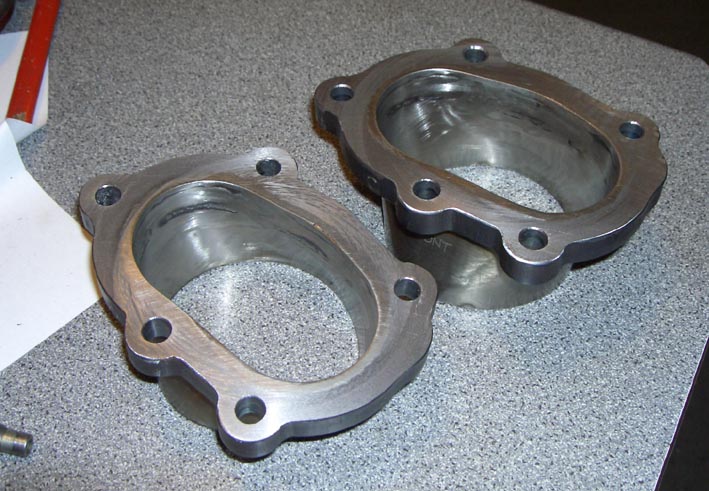

Mating face's machine for good seal.

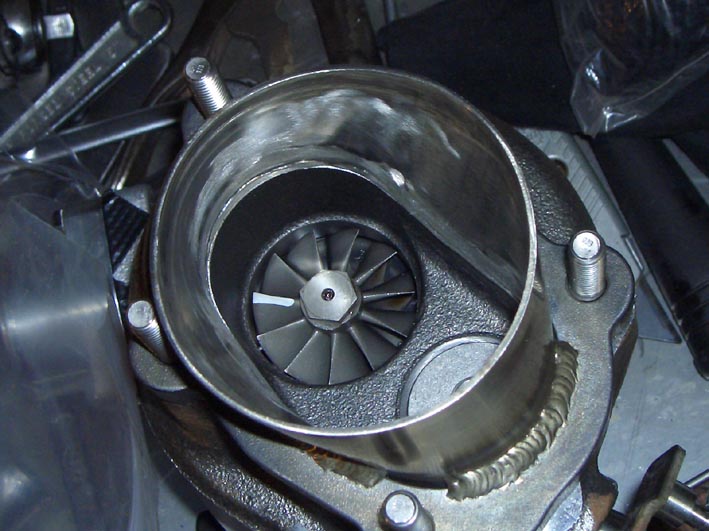

Fit Check.
