- Rear suspension donut bush.
- Symptoms of failure, knocking suspension
whilst accelerating left or right.
- Very common, however mine was not showing this
problem too much.

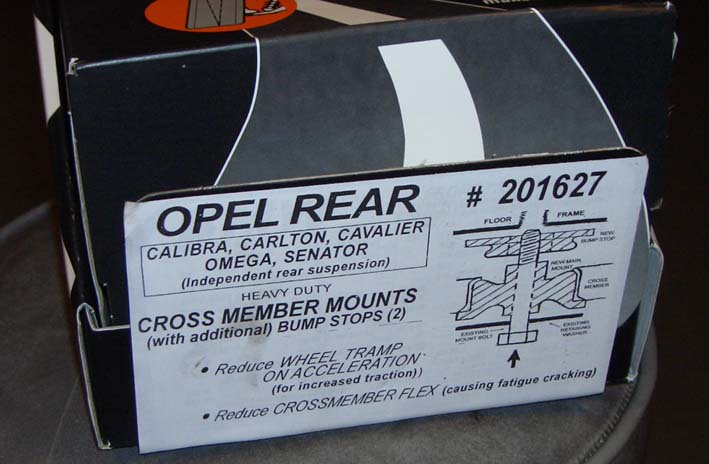

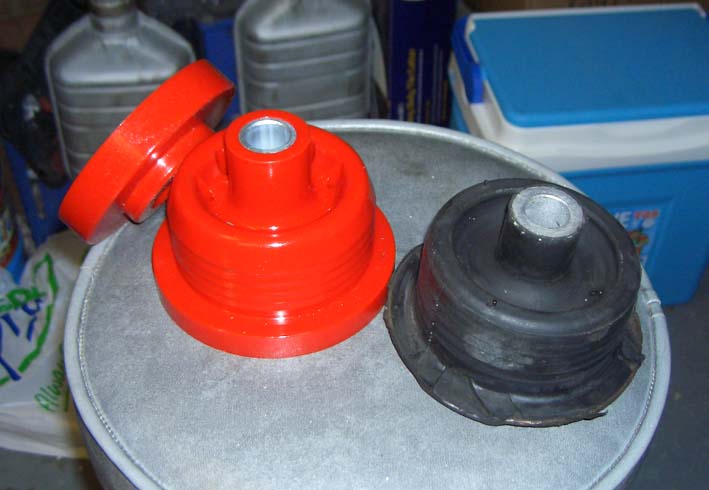

- Below shows the new replacement with the extra
washer that sits between
- the arm and chassis. If you are lucky Ian
Marsh might have some stock left
- over from a group buy.
Senator3024v@hotmail.com
- Support the cross member arm with a jack, undo
and remove the 3 bolts holding the support bracket.
- Remove the long bolt through the centre of the
bush. Prize the bush out of it's socket with a large
- screwdriver.

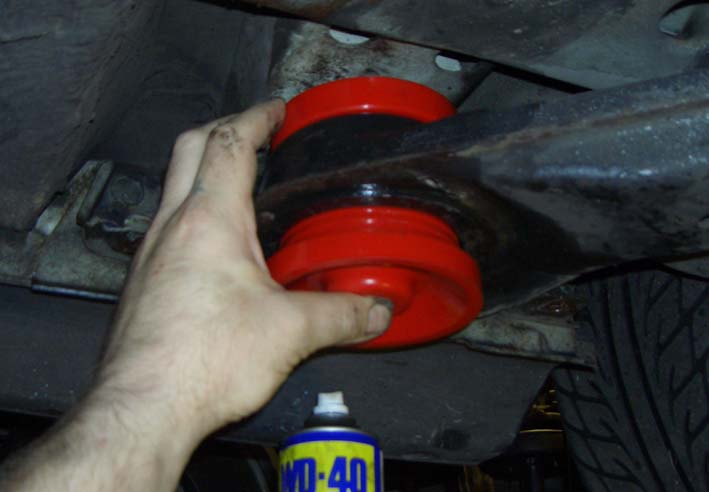

- The new bush will easily push into the holder
in the arm, the spacer washer fits over the top between
- the chassis and cross member.

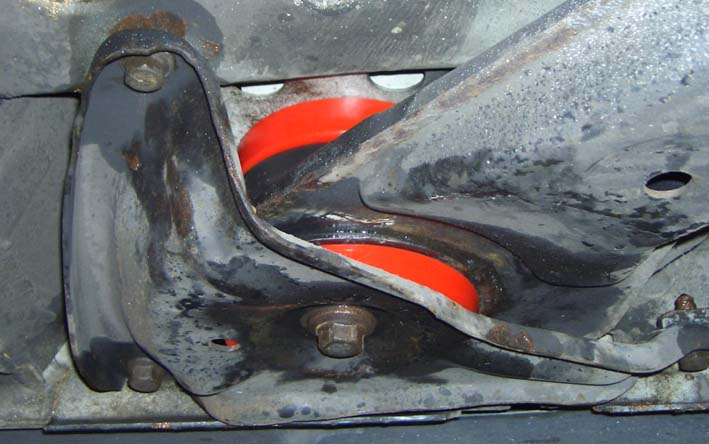

All bolted back up.

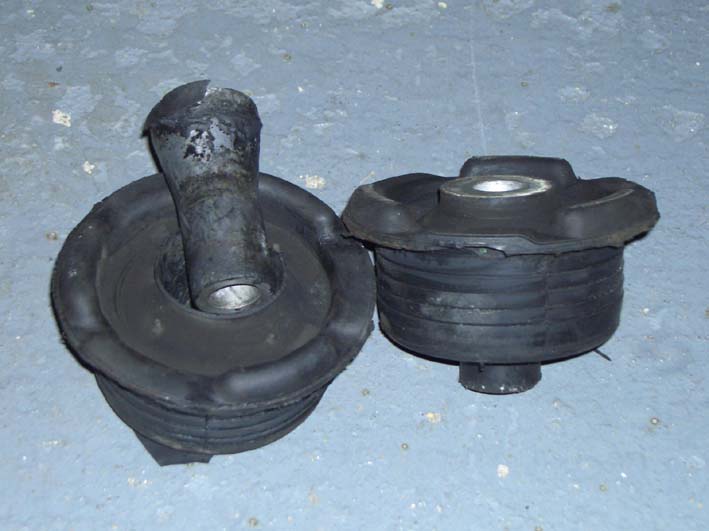

- The other side is exact same procedure (my nearside),
however this was a surprise as this bush had
- completely failed, the aluminium insert had become
unstuck from the rubber completely.
